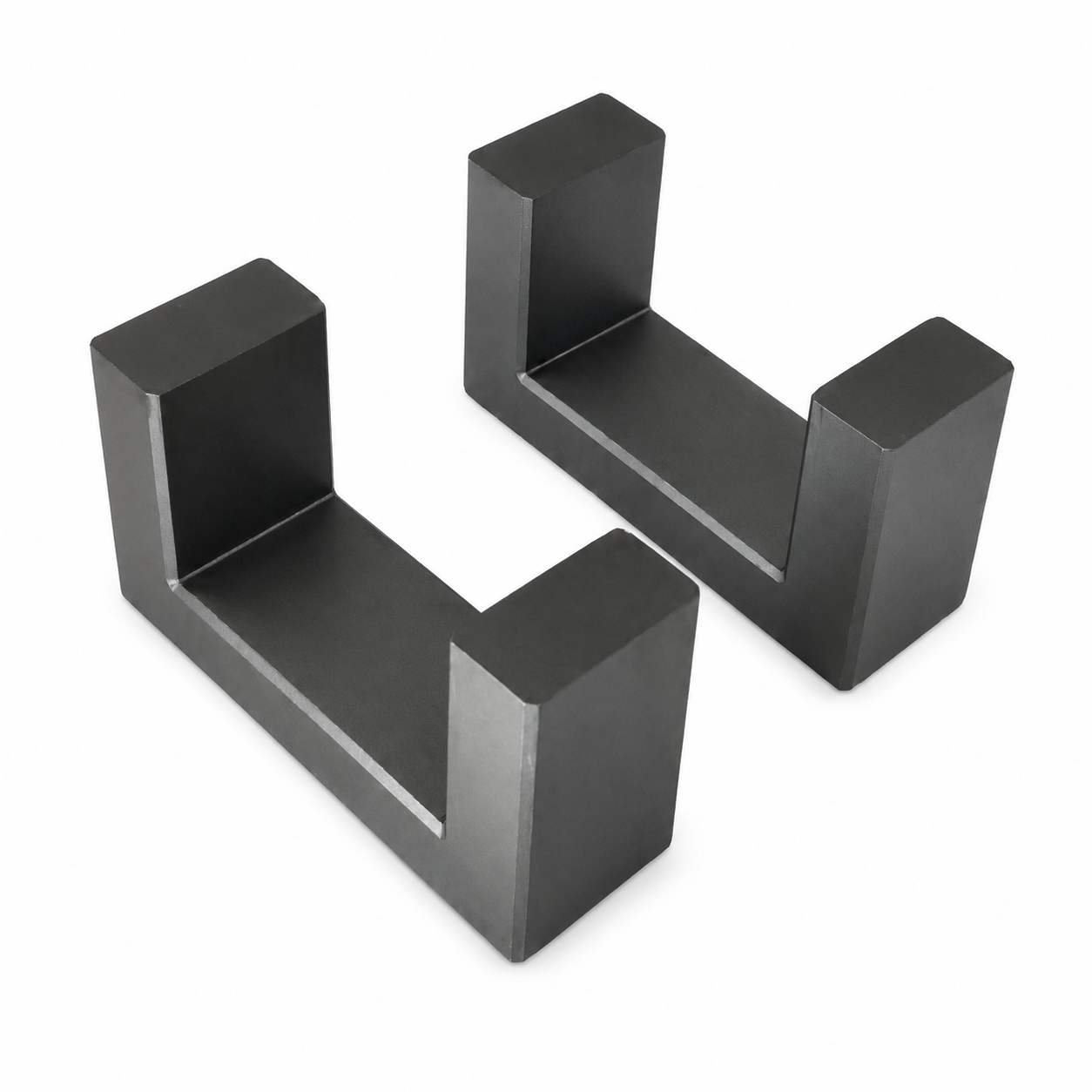

UF86A U-Shape Ferrite Core Set – MnZn PC40 High-Frequency Transformer Core, 1 Pair

UF86A U-Shape Ferrite Core Set — MnZn PC40, 1 Pair

Large U-shape ferrite core set for high-frequency transformer, inverter, RF choke, induction, and power electronics applications.

Key Features & Benefits

• Large UF86A Ferrite Core: U-shape ferrite core design suitable for custom high-frequency transformer and choke builds.
• MnZn PC40 Material: Manganese-zinc ferrite material commonly used for high-frequency power conversion applications.
• 1 Pair Included: Supplied as 2 matching U-shaped ferrite core pieces, suitable for forming a complete magnetic path.
• High-Frequency Applications: Suitable for inverter transformers, switching power supplies, RF chokes, induction circuits, and experimental power electronics.
• Custom Winding Friendly: Open U-core shape allows flexible winding arrangements depending on your transformer or choke design.
• Large Power Project Use: Practical for DIY inverter, resonant converter, isolated DC-DC converter, and high-frequency transformer development.

Description

The UF86A U-shape ferrite core set is designed for custom high-frequency magnetic components such as inverter transformers, RF chokes, isolation transformers, switching power supply transformers, and experimental power electronics projects.

This set includes 2 U-shaped ferrite core pieces, allowing the user to form a closed magnetic path when paired together. The large core size makes it suitable for higher-power projects where a standard small ferrite core may not provide enough winding space or magnetic cross-section.

The UF86A core is made from MnZn PC40 ferrite material, commonly used in high-frequency transformer and power conversion applications. It is suitable for experienced builders designing custom transformers for inverter circuits, resonant converters, DC-DC converters, RF choke assemblies, and other switching power systems.

Typical Applications

• High-frequency inverter transformers
• Isolated DC-DC converter transformers
• Switching power supply transformer builds
• RF choke and ferrite bead applications
• Induction heating and resonant power circuits
• Custom transformer and inductor experiments
• Power electronics research and prototyping

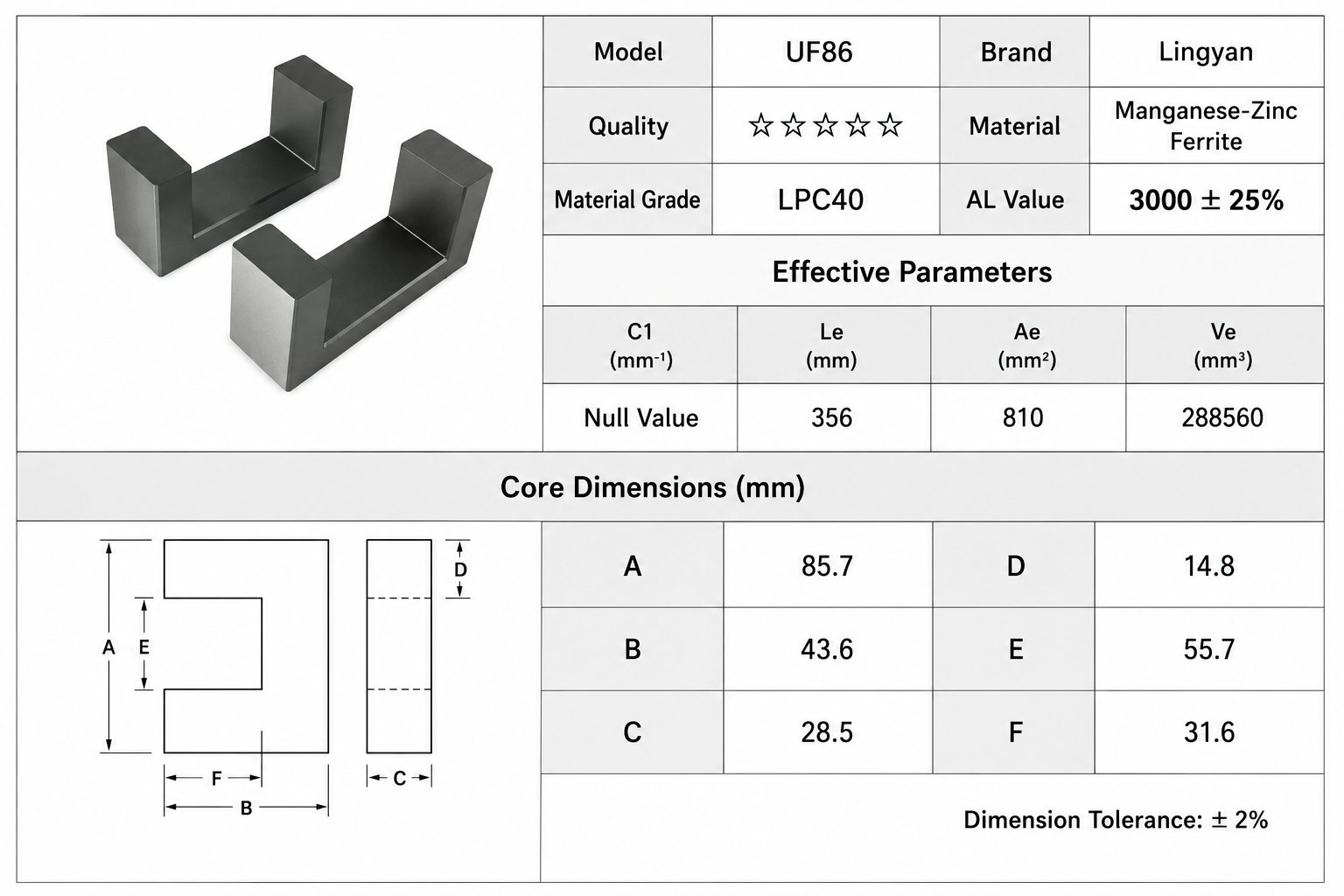

Specifications

• Product Name: UF86A U-Shape Ferrite Core Set
• Model: UF86A
• Model Number: UF86A-1
• Core Type: U-shape ferrite core
• Material: MnZn PC40 ferrite
• Quantity: 1 pair / 2 pieces
• Width: 86 mm
• Height: 43 mm
• Round Length: 344 mm
• Customisable Use: Suitable for custom transformer, choke, and ferrite bead applications
• Origin: Mainland China

Package Includes

• 2 × UF86A U-Shape Ferrite Core Pieces

Important Notes

• Design knowledge required: This is a ferrite core set only. Wire, bobbin, clamps, spacers, and mounting hardware are not included unless stated separately.
• Core gap depends on assembly: Final magnetic performance depends on winding design, air gap, clamping method, operating frequency, and circuit topology.
• Handle with care: Ferrite material is hard but brittle and may crack if dropped or clamped unevenly.
• Verify before use: Always confirm the core dimensions and suitability for your transformer or choke design before building high-power circuits.

Tip: For inverter and resonant converter projects, choose the core size based on target power, switching frequency, turns ratio, flux density, winding window, and cooling requirements.
