SSTC Tesla Coil Driver Board – Solid State Tesla Coil Controller

⚡ SSTC Tesla Coil Driver Board – Solid State Tesla Coil Controller

Condition: New
Type: SSTC (Solid State Tesla Coil) Driver Board
Status: In Stock – Ready to Ship

🔧 Product Overview

This SSTC Tesla Coil Driver Board is a fully assembled control and driver module designed for operating Solid State Tesla Coils with stable oscillation and adjustable performance. It integrates signal generation, feedback processing, and gate-drive control into a compact PCB, making it suitable for both experimental Tesla coil projects and advanced hobbyist or research applications.

The board supports tuning, modulation, and feedback adjustment, allowing precise control over coil resonance and output behavior.

⭐ Key Features

• Designed specifically for SSTC Tesla Coil systems
• Integrated oscillator, feedback, and control circuitry
• Multiple adjustment potentiometers for tuning and modulation
• Stable operation with resonant feedback
• Through-hole components for easy servicing and modification
• Compact PCB layout with labeled test points and terminals
• Suitable for continuous or modulated operation (depending on configuration)

⚙️ Functional Controls

• Frequency and resonance tuning
• Feedback sensitivity adjustment
• Output drive level control
• On-board connectors for power, feedback coil, and gate drive output

🔌 Typical Applications

• Solid State Tesla Coil (SSTC) projects
• High-frequency resonant driver experiments
• Educational demonstrations
• Plasma and high-voltage research
• DIY Tesla coil systems using MOSFETs or IGBTs (with external power stage)

📐 Board Information

• Board Type: SSTC Driver / Controller PCB
• Assembly: Fully assembled
• Mounting: Through-hole PCB with panel-mount potentiometers
• External Power Stage Required: Yes (MOSFET / IGBT bridge not included)

📦 Package Contents

• 1 × SSTC Tesla Coil Driver Board

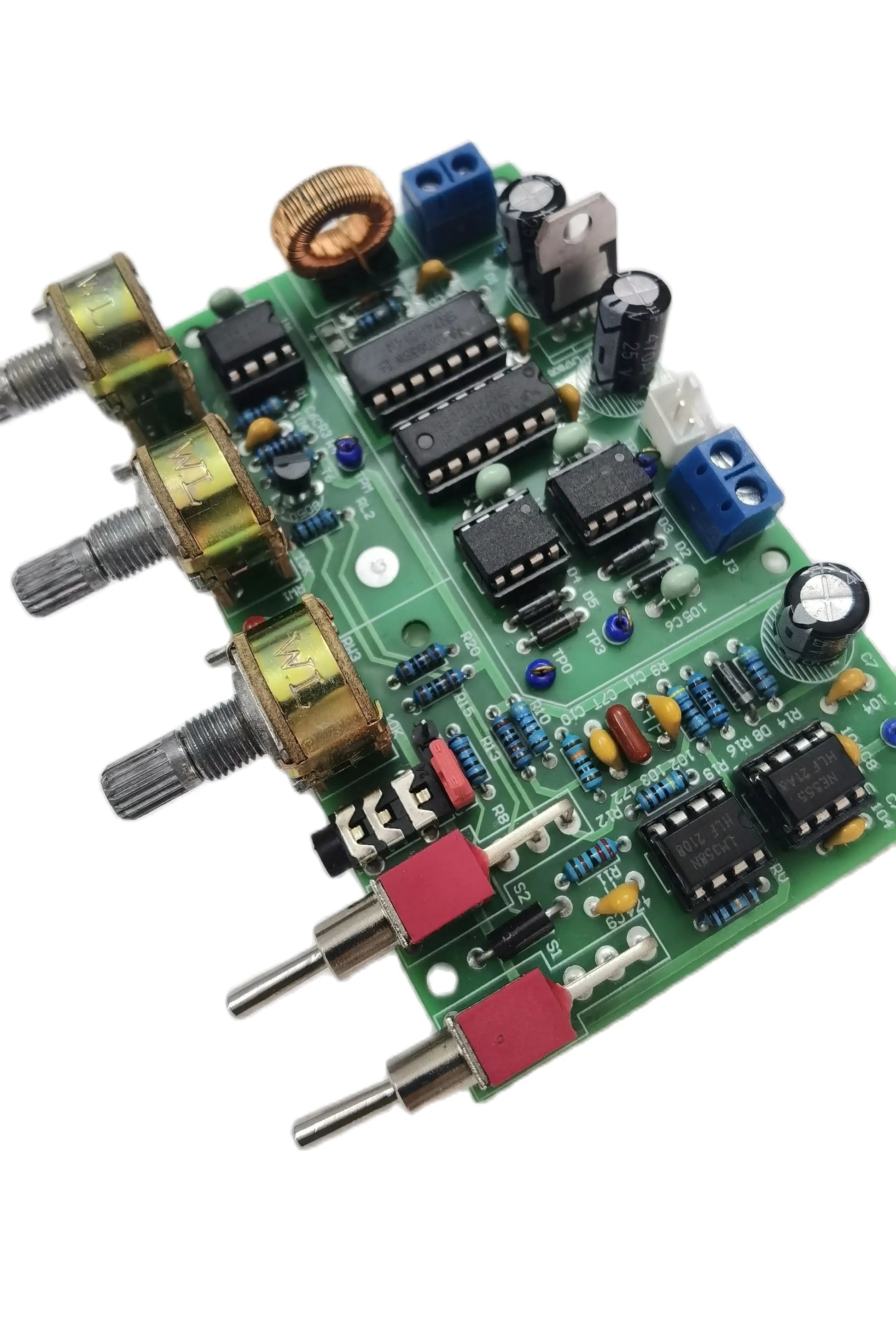

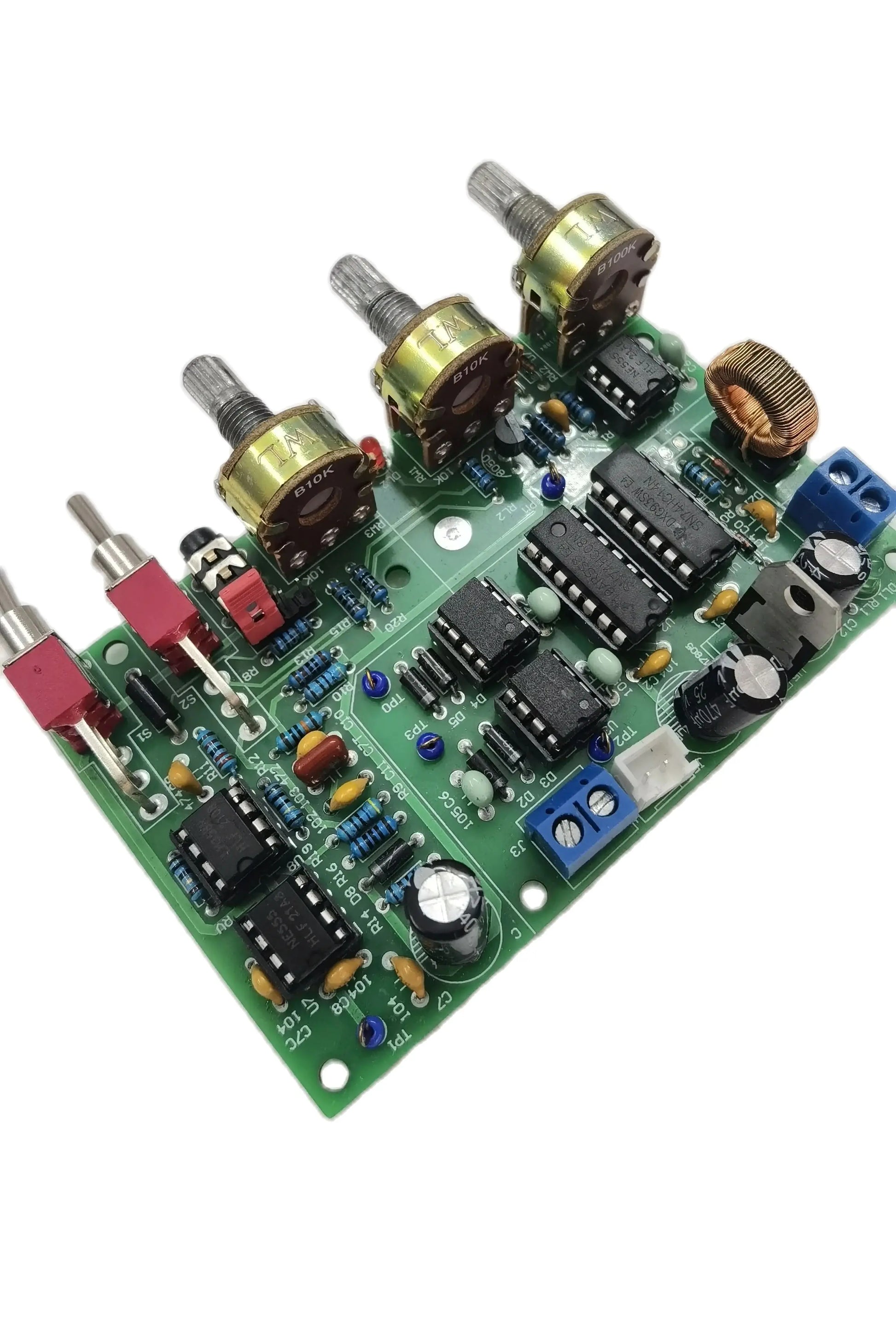

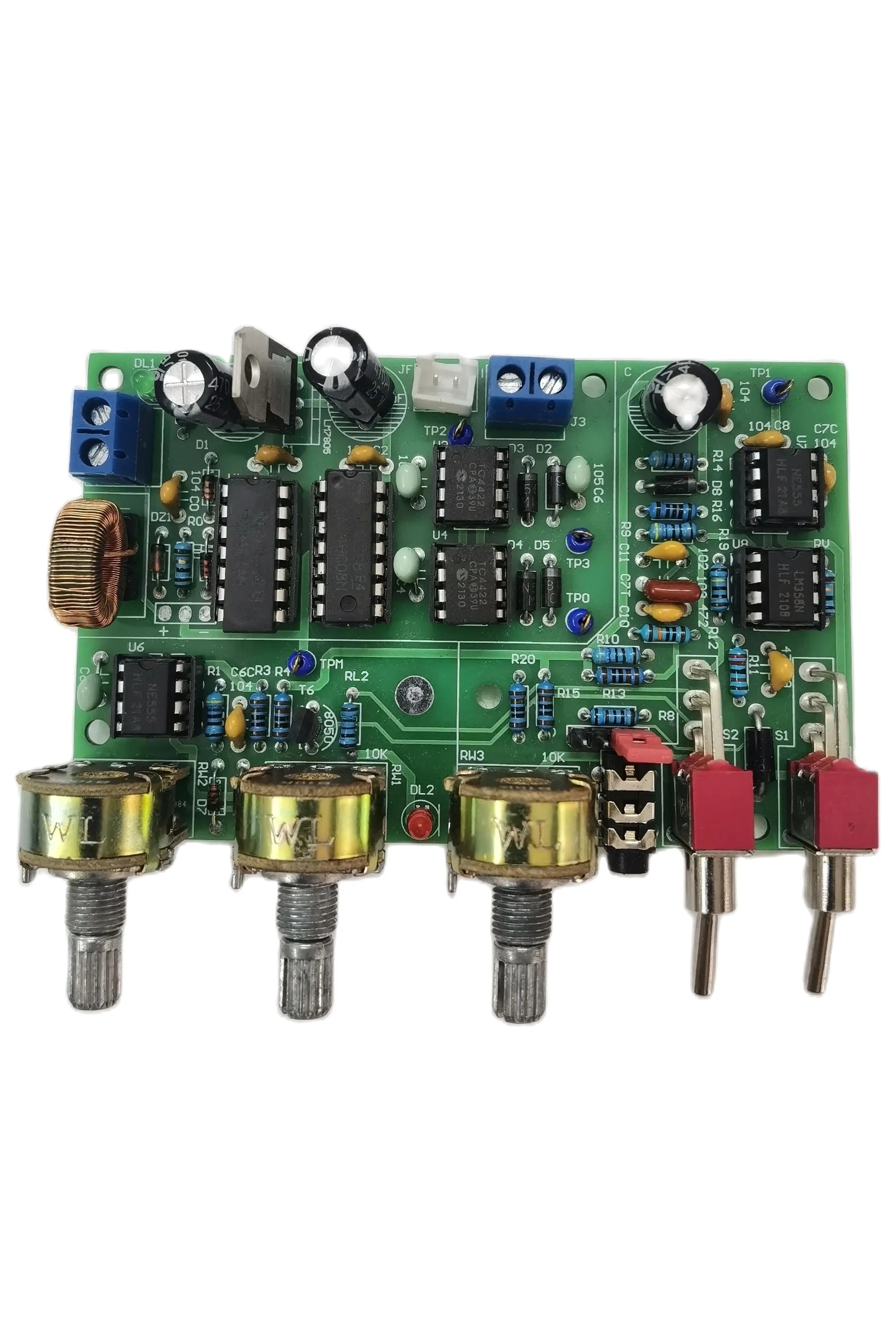

• As shown in images (no Tesla coil, power stage, or enclosure included)

⚠️ Important Notes

• This is a high-voltage control board intended for experienced users
• Proper isolation, grounding, and safety precautions are required
• Not a complete Tesla coil – external driver stage and coil are required

✅ Quality & Handling

• New, unused board
• Tested design suitable for repeatable builds
• Carefully packed to prevent damage during shipping
