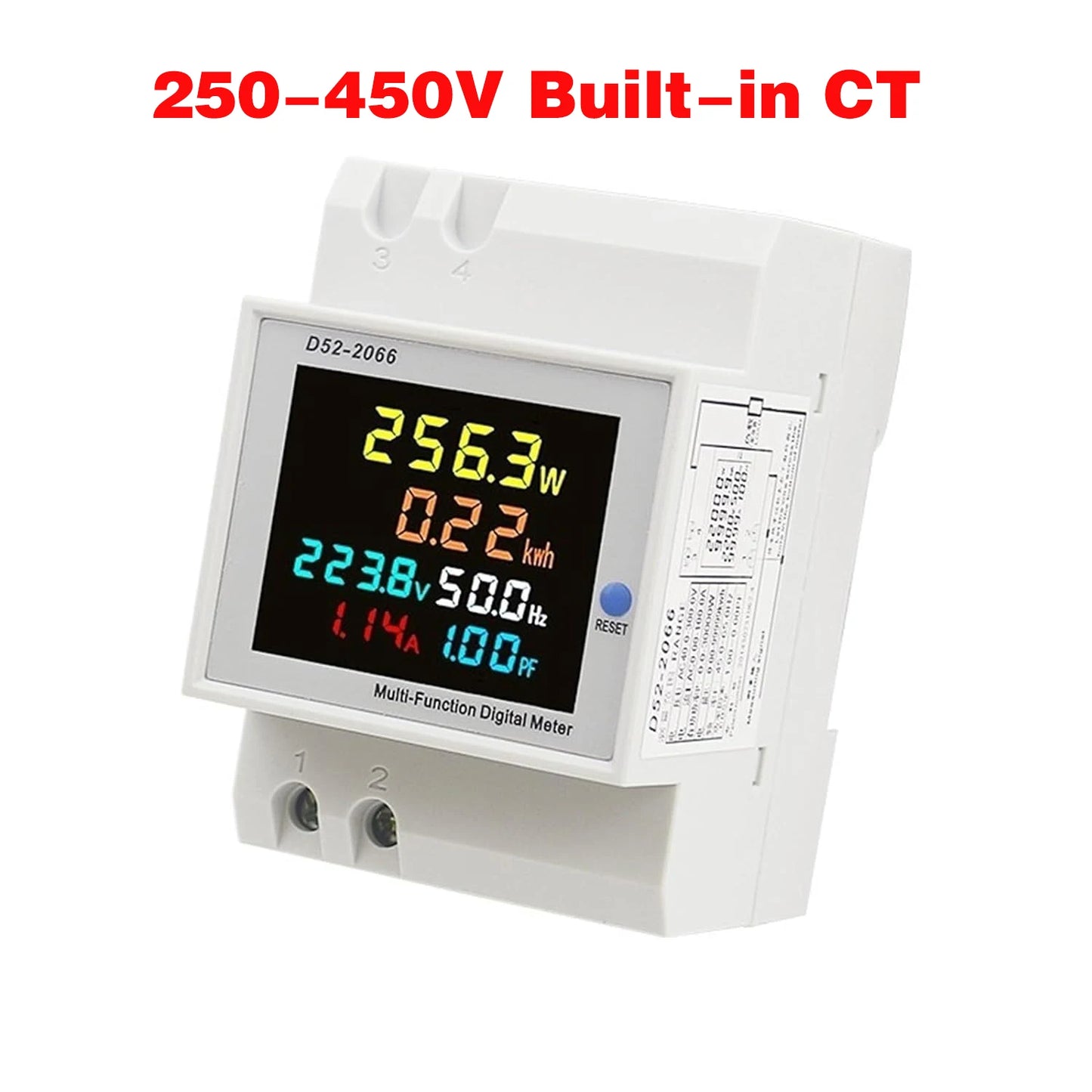

Multifunction Digital Power Meter – D52-2066

AC Voltage, Current, Power, Energy, Frequency & Power Factor Display

🔍 Overview

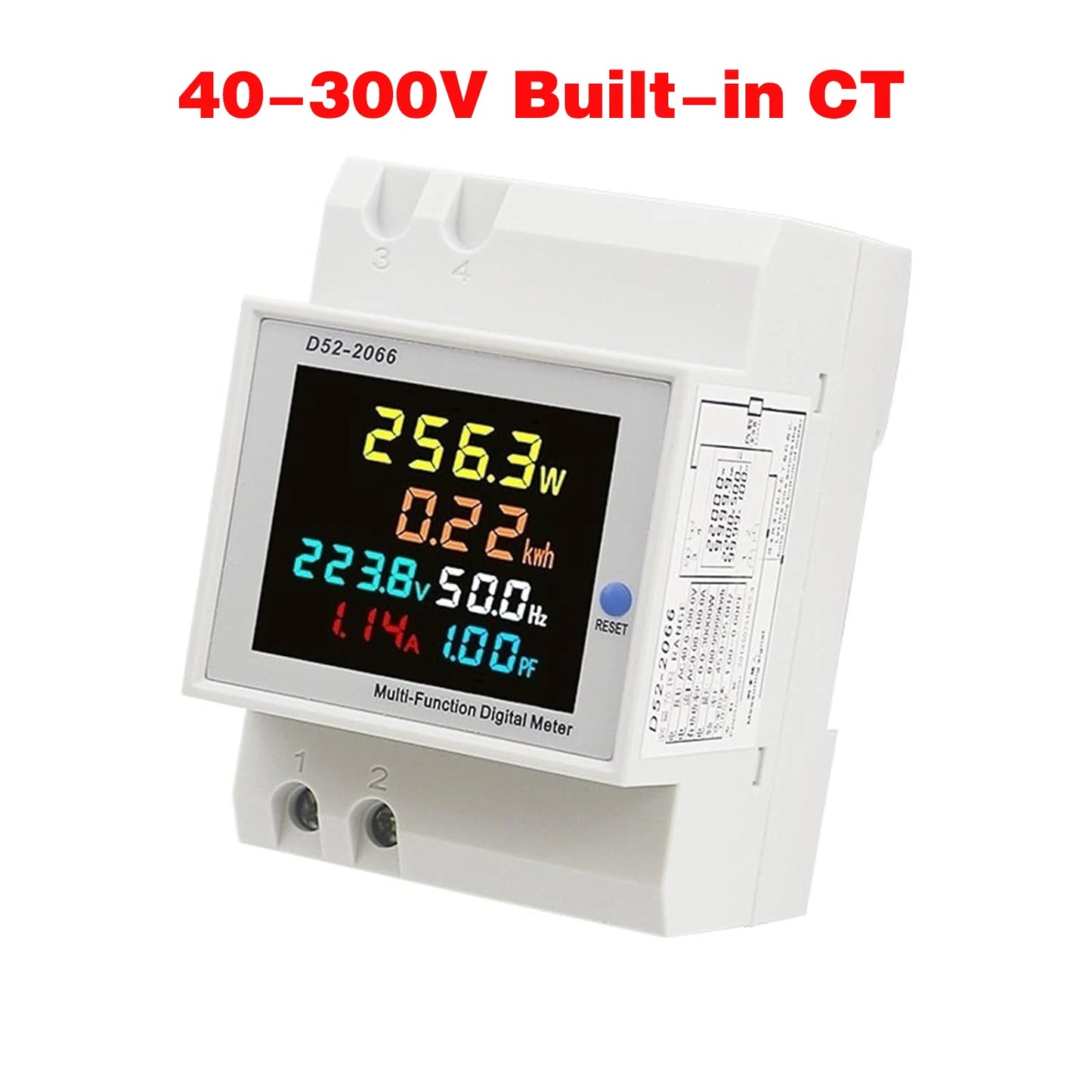

The D52-2066 is a compact, panel-mounted multifunction digital power meter designed for real-time monitoring of AC electrical parameters. It provides precise readings of voltage, current, active power, frequency, power factor, and energy consumption (kWh) — all on a bright, color LCD display. Ideal for workshops, laboratories, and energy-efficiency systems.

⚙️ Features

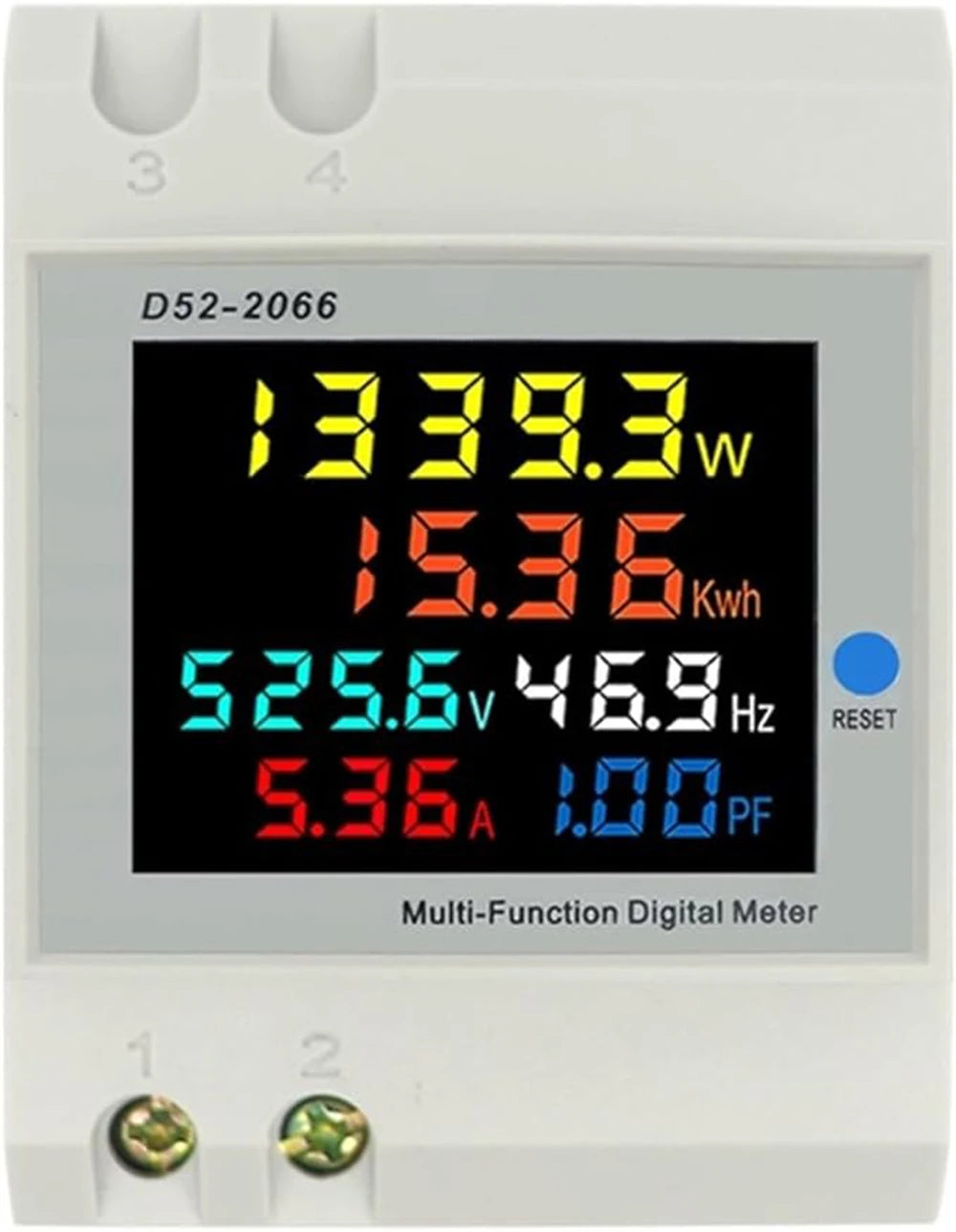

• All-in-one display showing voltage, current, power, power factor, frequency, and total energy
• High accuracy AC measurement (Class 1.0)

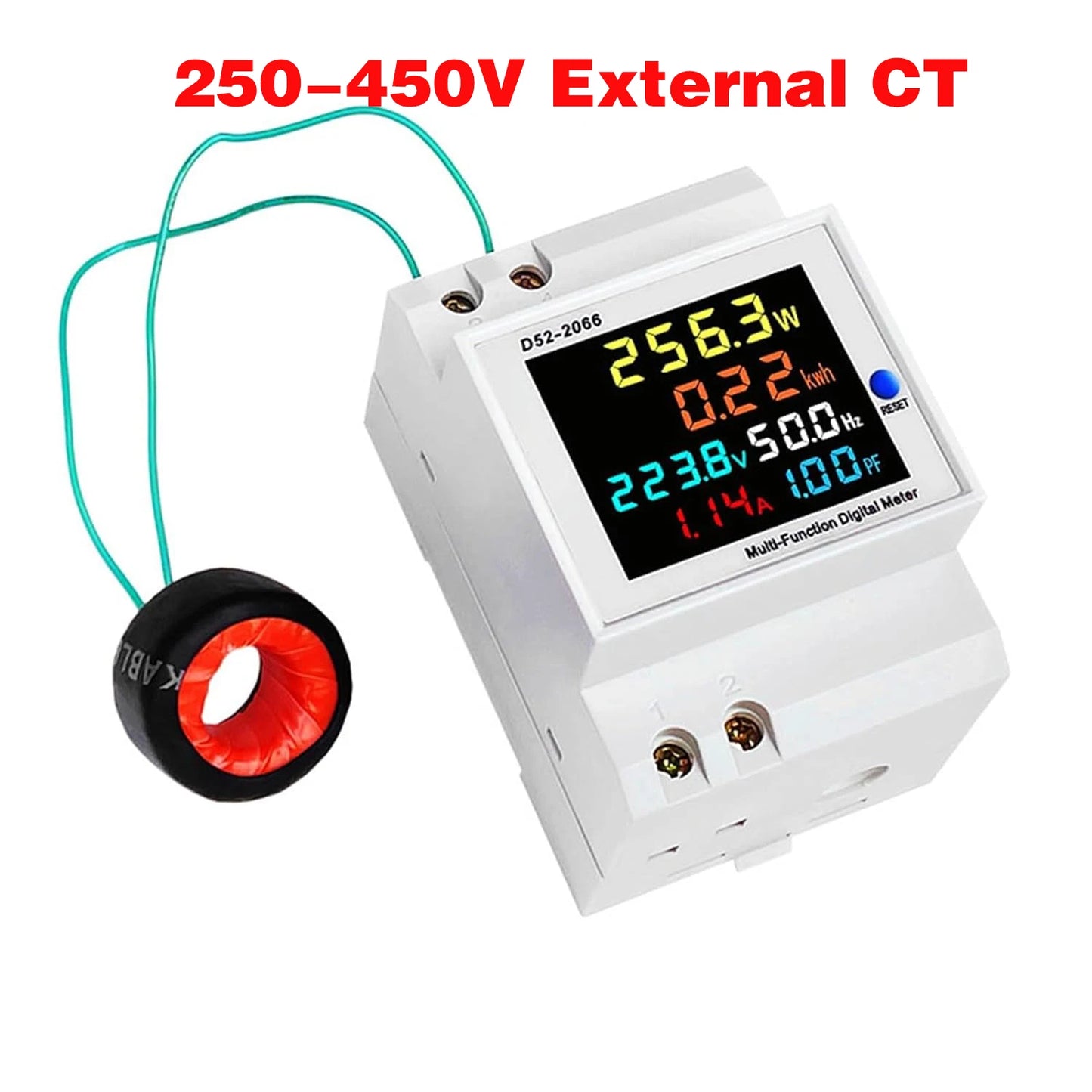

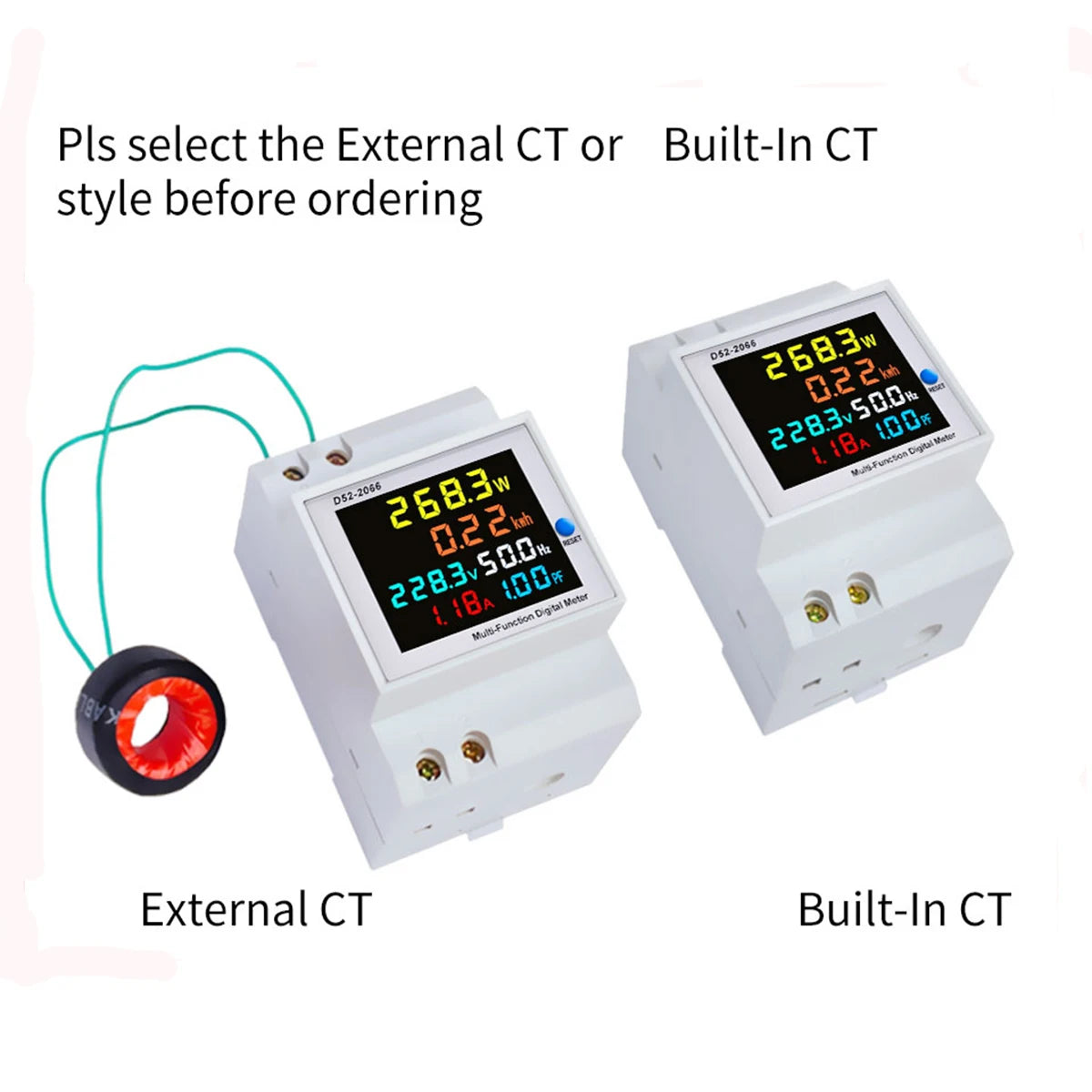

• External current transformer (CT) included for safe, isolated current measurement up to 100 A
• Real-time monitoring with fast refresh rate and stable readings

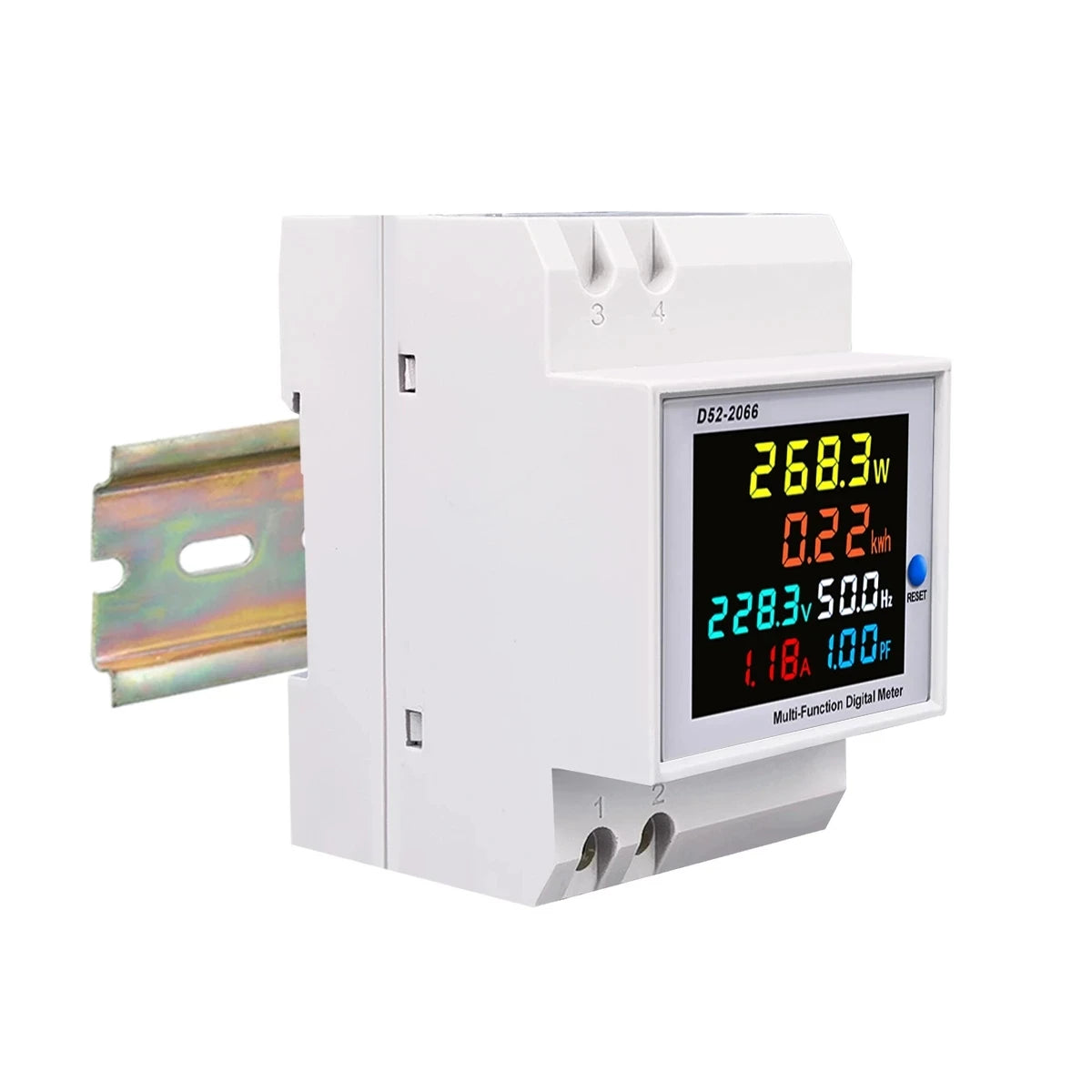

• Compact DIN-rail mounting for easy installation in distribution boards or inverter cabinets
• Bright multi-color LCD for clear visibility in low-light environments
• Front-panel reset button for quick energy counter reset

📦 Specifications

• Model: D52-2066
• Display: Multi-color LCD
• Voltage range: AC 80 – 300 V (single phase)
• Current range: 0 – 100 A (via external CT)
• Power measurement: 0 – 22 kW
• Frequency: 45 – 65 Hz
• Power factor: 0.00 – 1.00
• Accuracy: ± 1 %

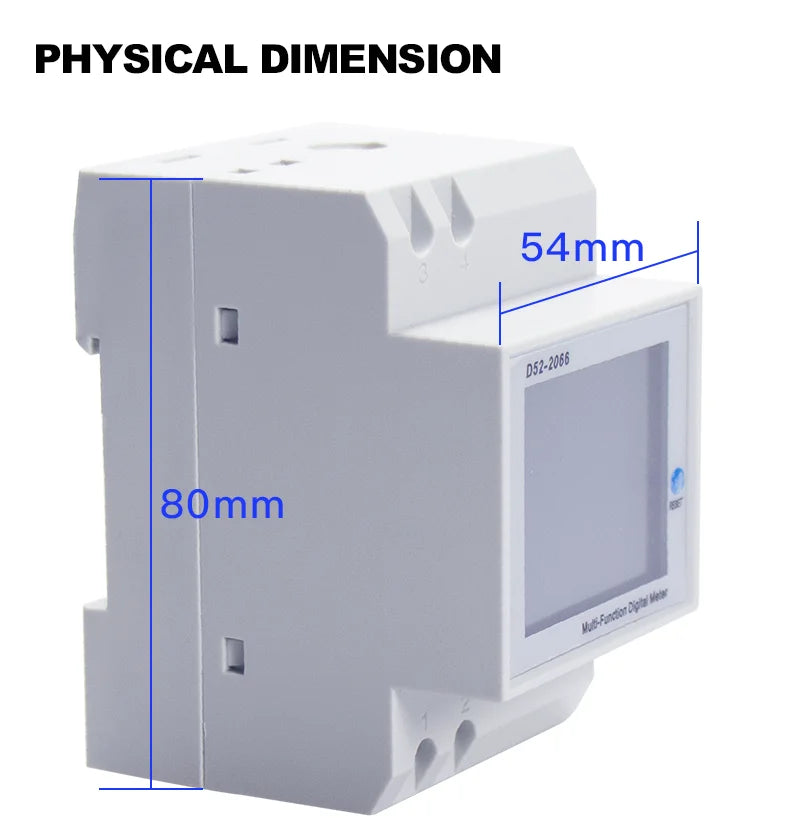

• Mounting: Standard 2-module DIN rail
• Reset: Front-panel push button
• Power supply: Self-powered from measured line
• Operating temperature: −10 °C to +65 °C

🧰 Applications

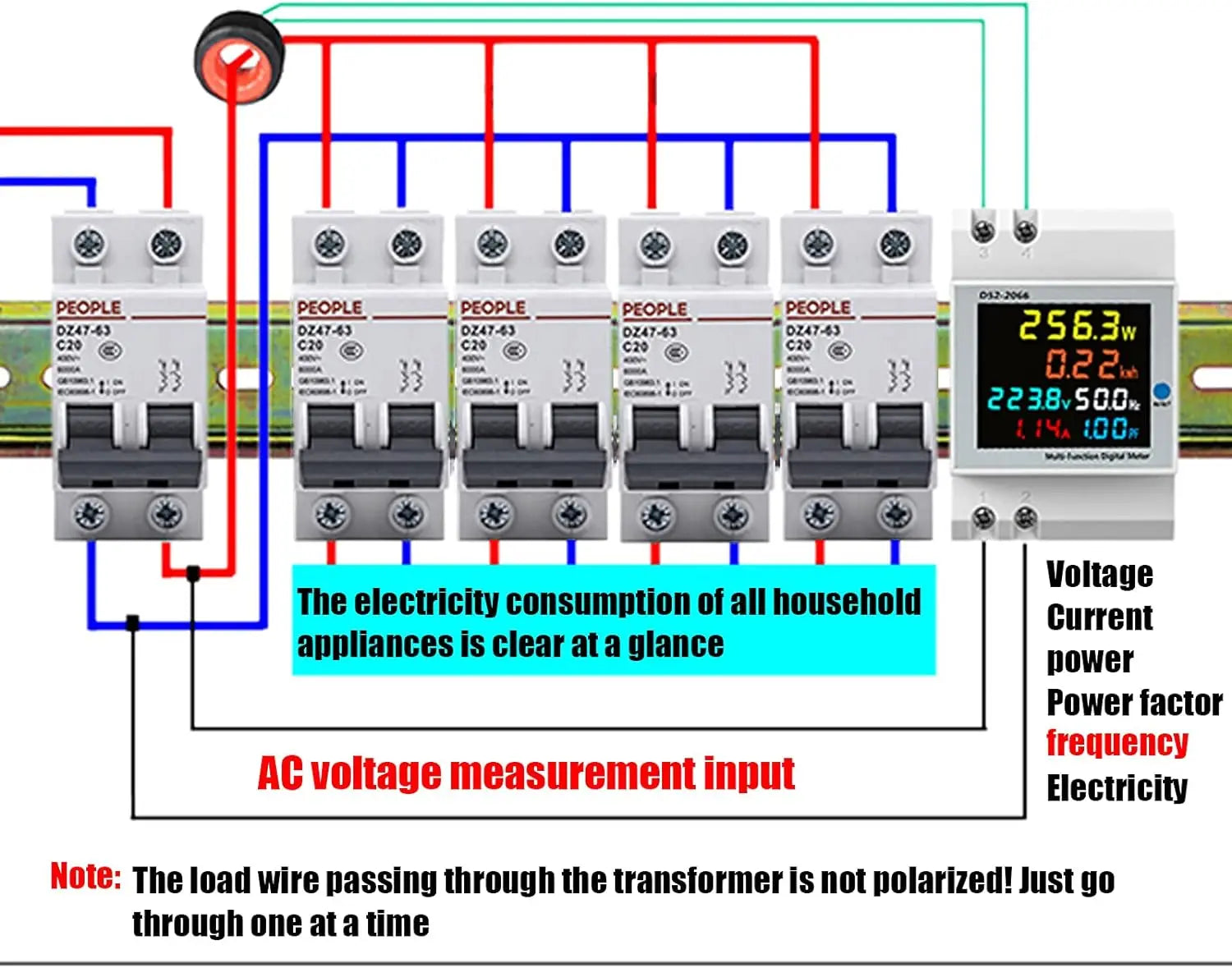

• Energy monitoring in residential or commercial electrical panels
• Load analysis for inverters, UPS systems, or test benches
• Real-time performance tracking in DIY or laboratory setups

📦 Package Includes

• 1 × D52-2066 Multifunction Digital Power Meter

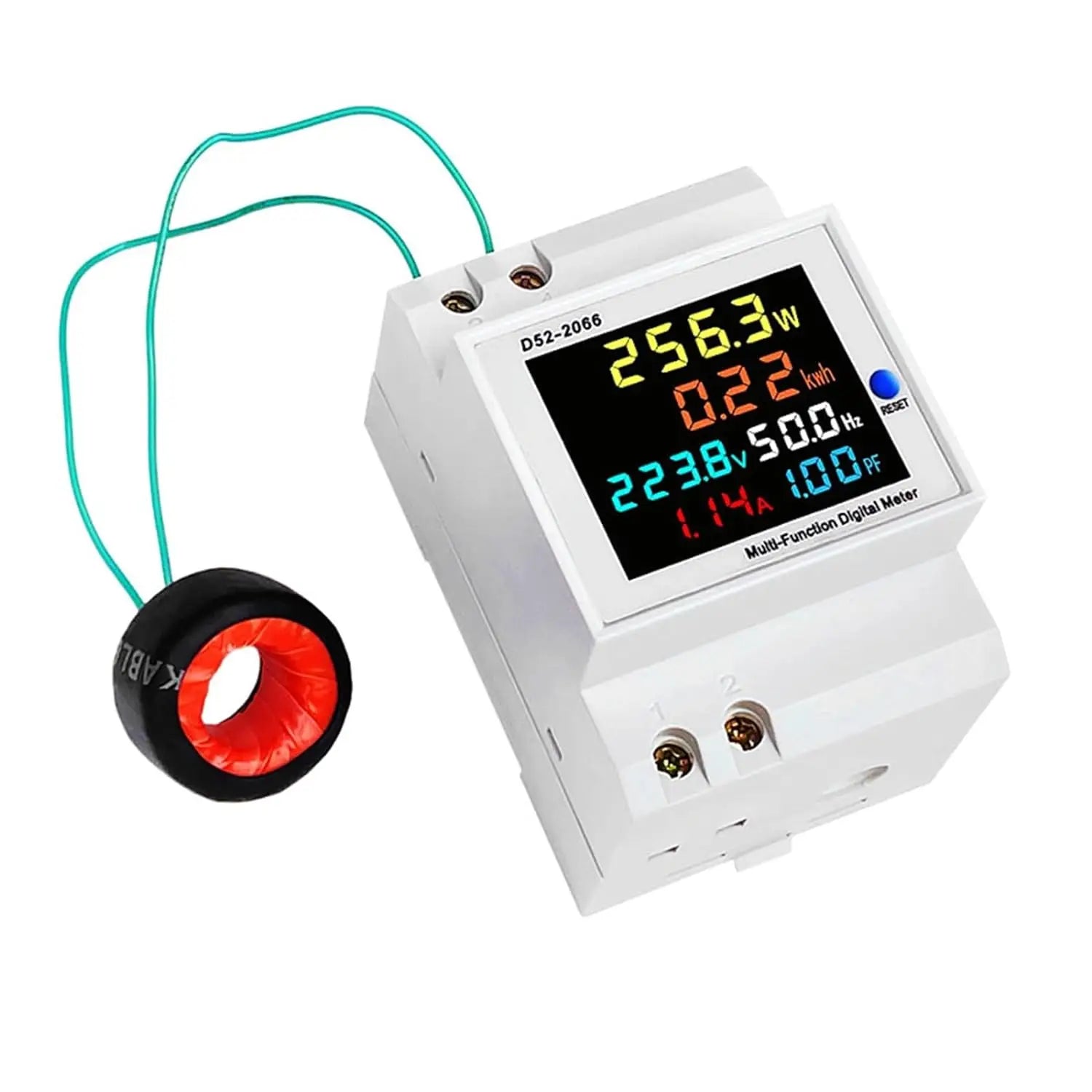

• 1 × 100 A External Current Transformer (CT Sensor)
• 1 × User Manual
