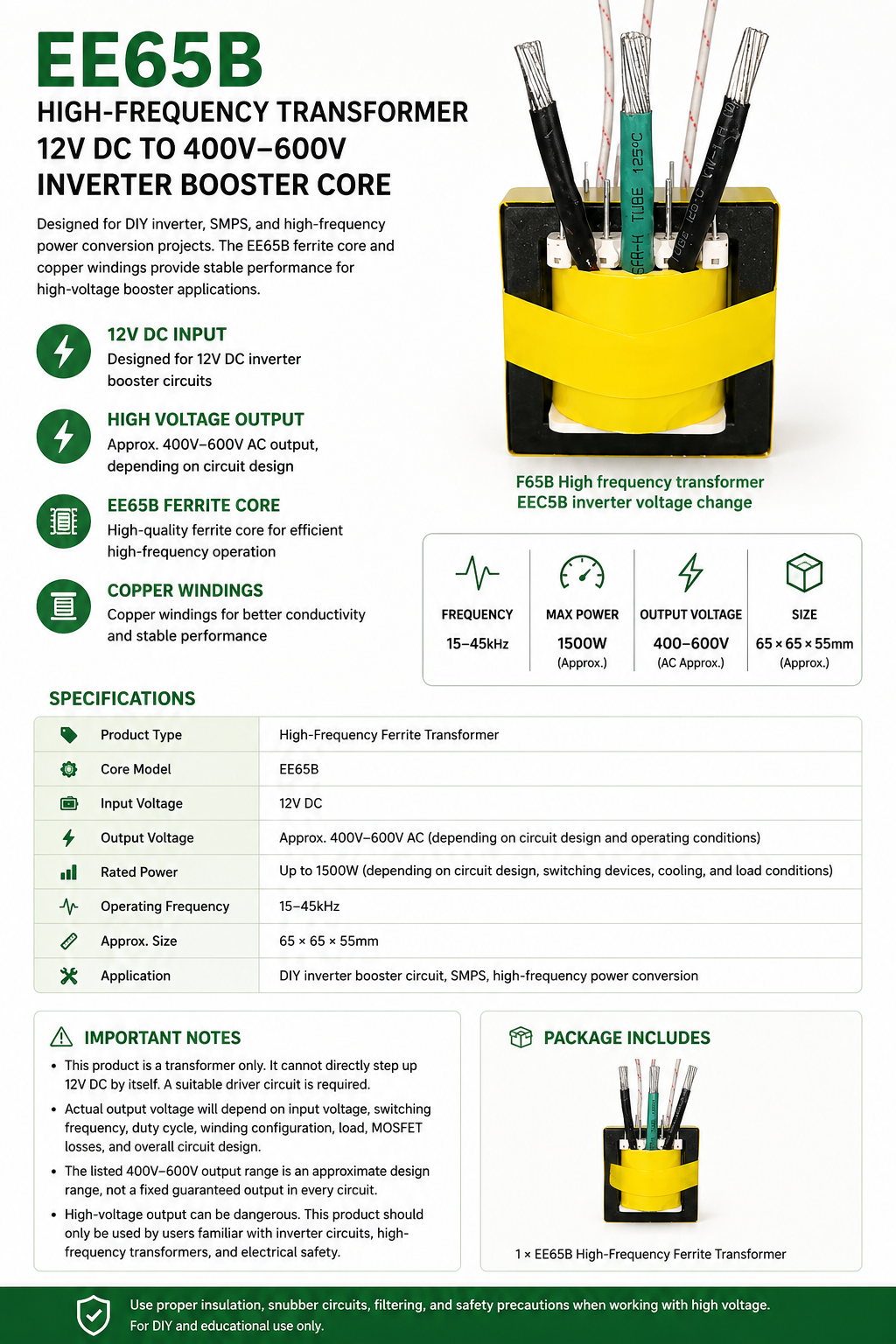

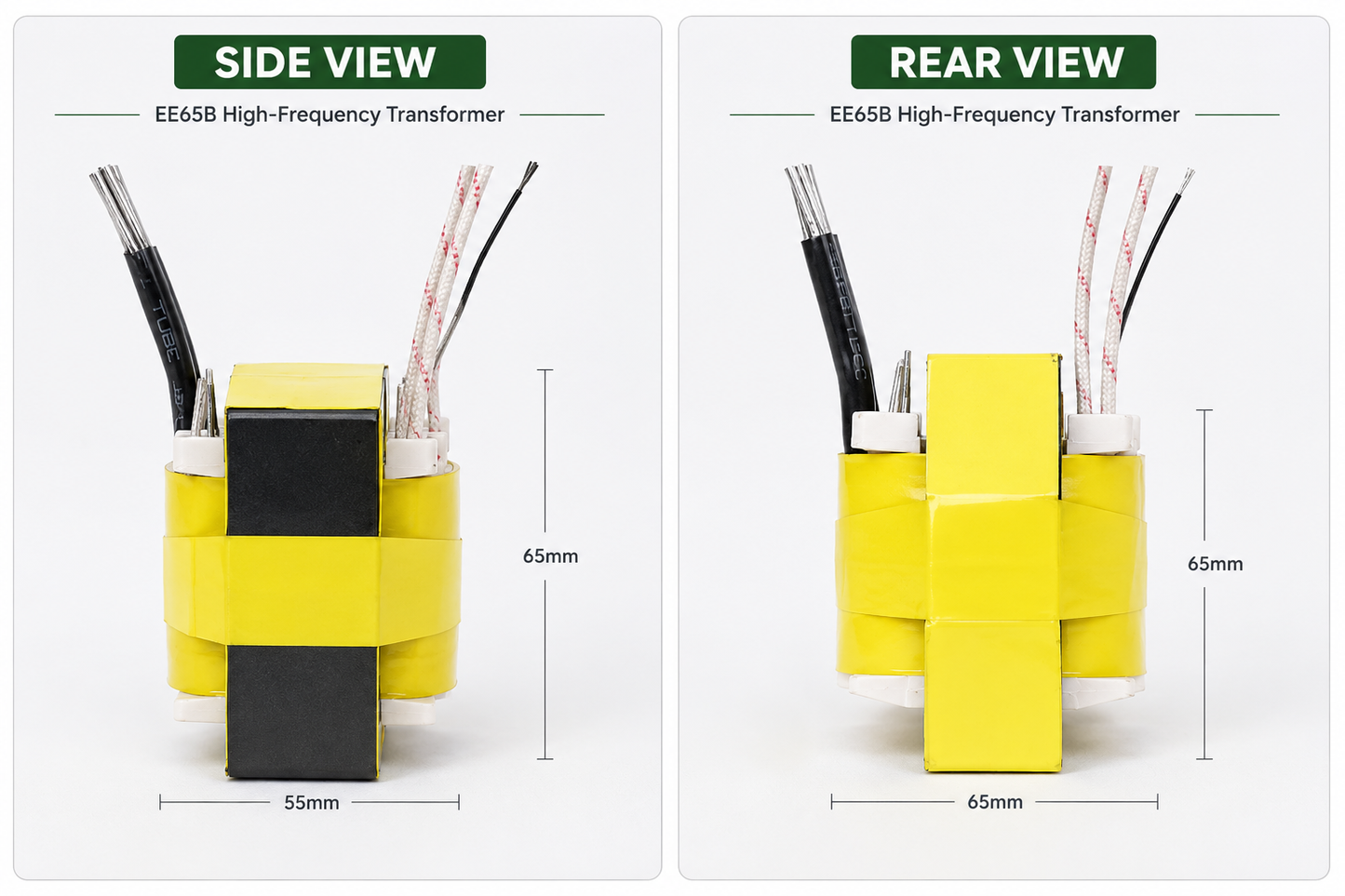

EE65B High-Frequency Transformer – 12V DC to 400V–600V Inverter Booster Core

EE65B High-Frequency Transformer – 12V DC to 400V–600V Inverter Booster Core

This EE65B high-frequency transformer is designed for DIY inverter, SMPS, and power electronics projects. It is suitable for 12V DC inverter booster circuits where a high-voltage output stage is required.

With a larger EE65B ferrite core and copper winding construction, this transformer is suitable for higher-power inverter projects compared with smaller EC49-style transformer modules.

Key Features

• ⚡ Designed for 12V DC inverter booster applications
• 🔋 High-voltage output range: approximately 400V–600V
• 🧲 EE65B ferrite transformer core
• 🧵 Copper winding construction
• 🛠 Suitable for DIY inverter, SMPS, and high-frequency power conversion projects
• 📦 Larger core size for higher-power applications

Specifications

Important Notes

• This product is a transformer only. It cannot directly step up 12V DC by itself. A suitable driver circuit is required.
• Actual output voltage will depend on the input voltage, switching frequency, duty cycle, winding configuration, load, MOSFET losses, and overall circuit design.
• The listed 400V–600V output range should be treated as an approximate design range, not a fixed guaranteed output in every circuit.
• High-voltage output can be dangerous. This product should only be used by users familiar with inverter circuits, high-frequency transformers, and electrical safety.

Package Includes

• 1 × EE65B High-Frequency Ferrite Transformer
