EC49 High-Frequency Transformer – 12V to 220–420V Inverter Core Module

EC49 High-Frequency Transformer – 12V to 220–420V Inverter Core Module

$44.00 USD
$0.00 USD $44.00 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

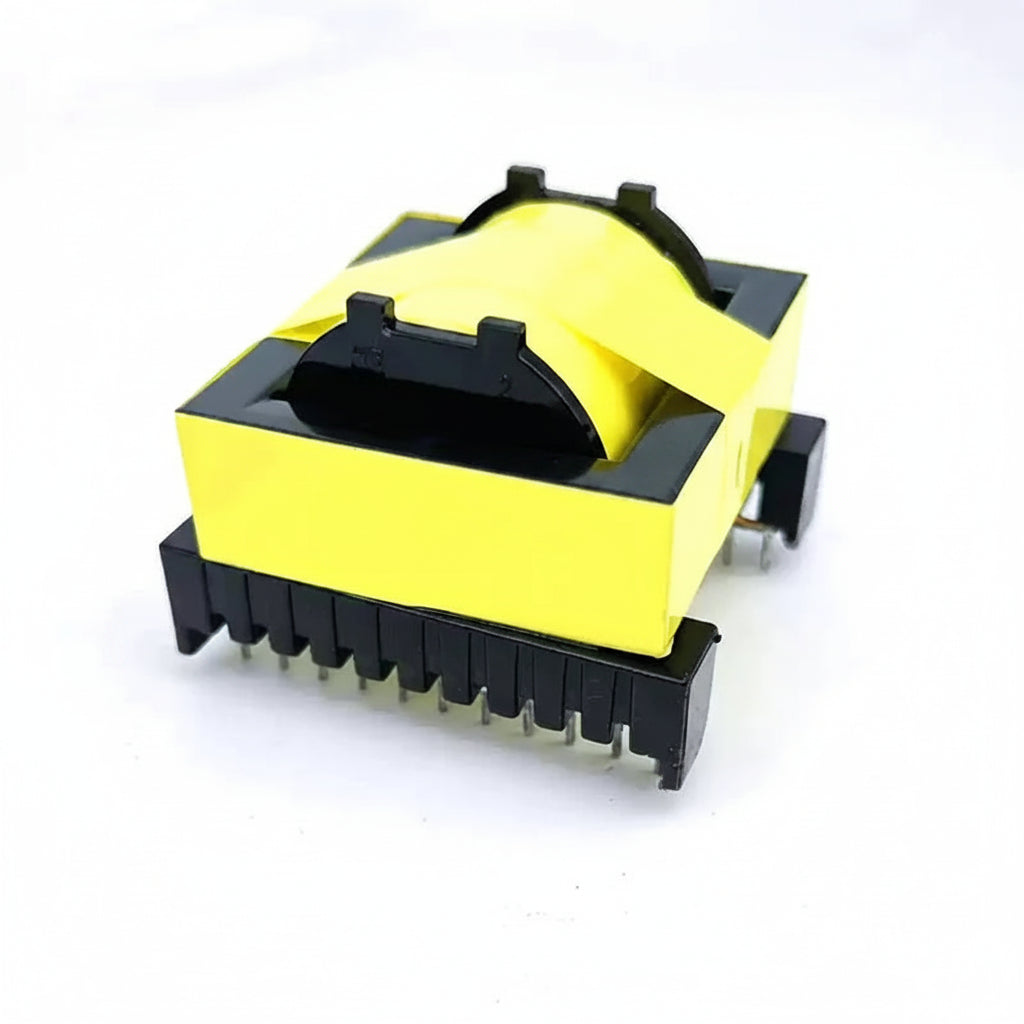

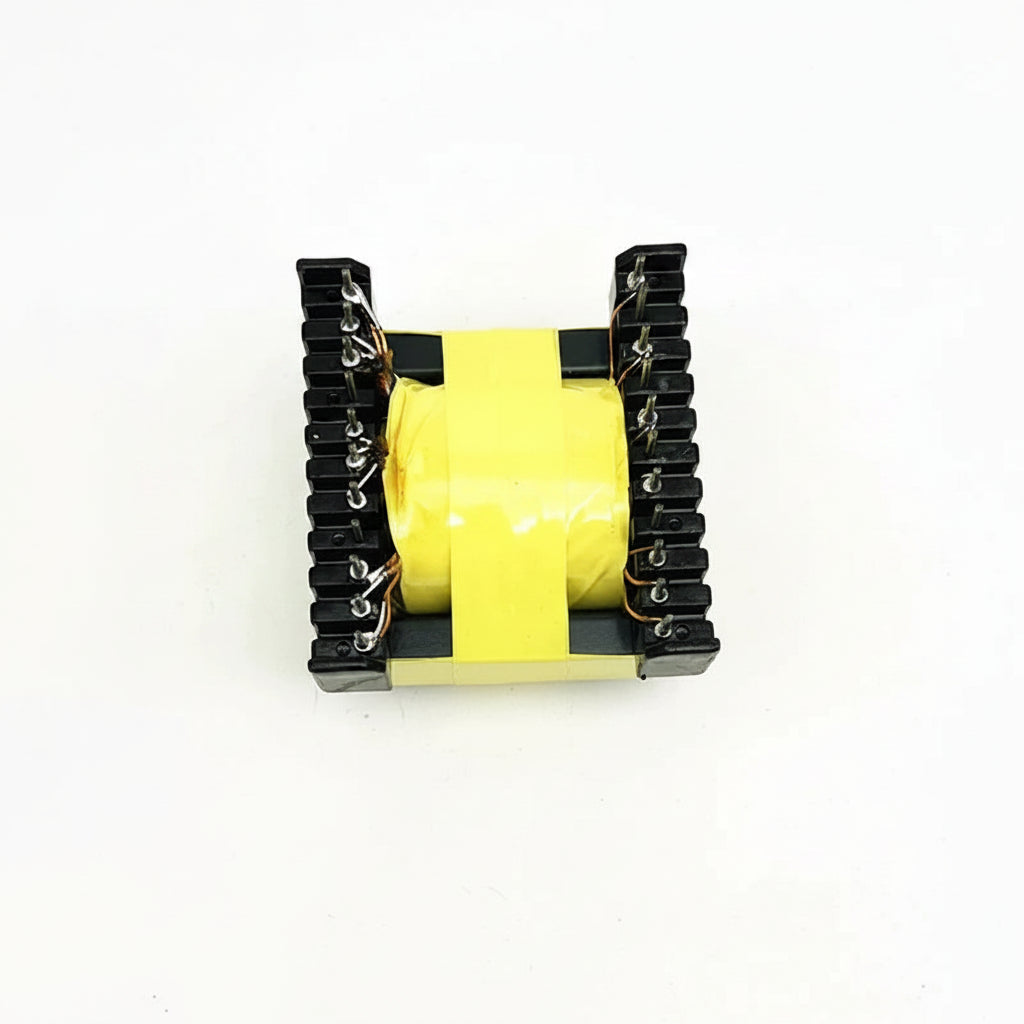

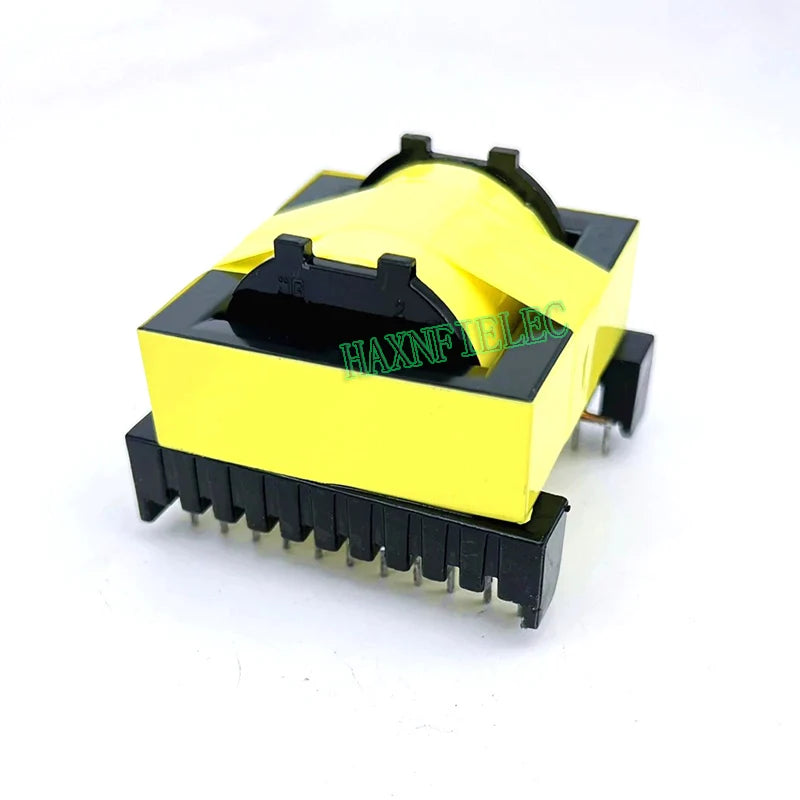

EC49/EC4954 High-Frequency Transformer – 12V to 220V–420V Inverter Booster Core

This EC49/EC4954 horizontal high-frequency transformer is designed for DIY inverter, SMPS, and power electronics projects. It is suitable for push-pull inverter circuit designs using driver ICs such as TL494 or SG3525 together with suitable MOSFETs or switching transistors.

Key Features

  • ⚡ Designed for 12V push-pull inverter booster circuits
  • 🔋 Multiple high-voltage output windings: 220V, 330V, 380V, and 420V
  • 🧲 EC49/EC4954 horizontal ferrite transformer structure
  • 🧵 Pure copper precision winding for improved conductivity
  • 🛠 Suitable for DIY inverter, SMPS, and high-frequency power conversion projects
  • 📦 Compact size with 11+11 pin configuration

Specifications

Model EC49/EC4954 Horizontal Type
Input Voltage 12V DC push-pull drive, 3T + 3T primary winding
Output Voltage Windings 220V / 330V / 380V / 420V
Output Turns 220V: 55T, 330V: 83T, 380V: 95T, 420V: 105T
Auxiliary Output 18V, 0–5T winding
Rated Power Up to 1000W, depending on circuit design, cooling, switching devices, and operating conditions
Operating Frequency 15–40kHz
Core Size 49 × 54 × 17mm, L × W × H
Body Size 54 × 58 × 40mm, L × W × H
Pin Configuration 11 + 11 pins
Pin Pitch 5mm
Row Pitch 40.5mm
Primary Wire 30 × 0.3mm copper strip/wire
Secondary Wire 0.7mm pure copper enameled wire
Weight Approx. 0.23kg

Important Notes

  • This product is a transformer only. It cannot directly step up 12V DC by itself. A suitable inverter driver circuit is required.
  • Common driver ICs used in this type of circuit include TL494 and SG3525, together with appropriate MOSFETs, gate drive components, and protection circuitry.
  • The listed output voltages are based on winding turns ratio and typical push-pull operation. Actual output voltage may vary depending on input voltage, duty cycle, switching frequency, MOSFET losses, transformer loading, wiring resistance, and circuit design.
  • No-load rectified voltage may be higher than the nominal voltage due to switching spikes and transformer leakage inductance. Proper filtering, snubber circuits, load testing, and safe measurement practices are recommended.
  • High-voltage output can be dangerous. This product should only be used by users familiar with inverter circuits, high-frequency transformers, and electrical safety.

Package Includes

  • 1 × EC49/EC4954 Horizontal High-Frequency Transformer
