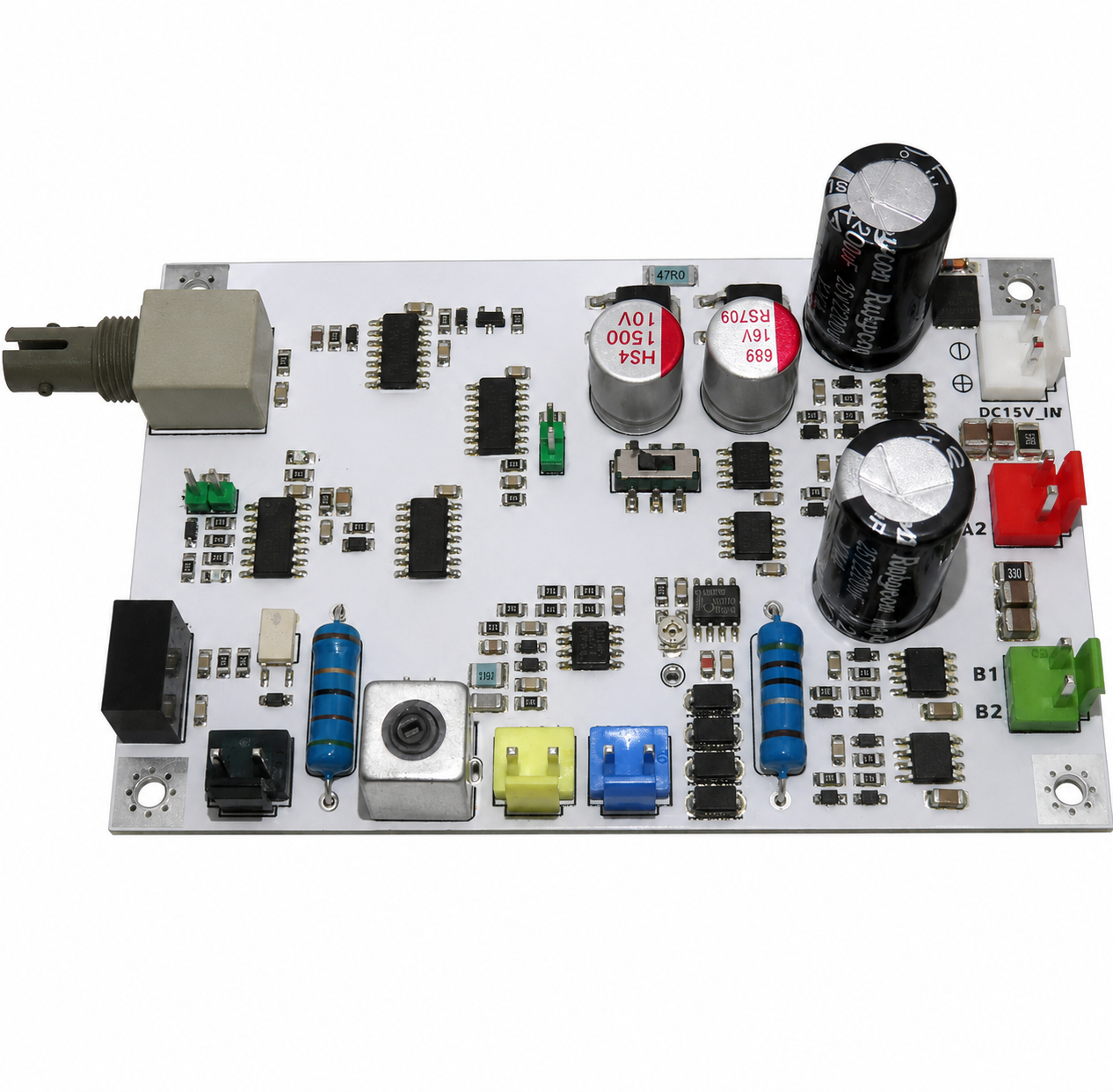

DRSSTC UD2.9 Phase-Shift PDM Dual Totem Driver Board – Tesla Coil Driver Module

DRSSTC UD2.9 Phase-Shift PDM Dual Totem Driver Board — Tesla Coil Driver Module

Advanced DRSSTC driver board for dual-resonant Tesla coil projects, supporting phase-shift/PDM control and dual totem driver output stages.

Key Features & Benefits

• UD2.9 Style Driver Board: Designed for DRSSTC and solid-state Tesla coil control applications.
• Phase-Shift / PDM Mode Support: Suitable for pulse-density modulation and phase-shift style control setups used in advanced Tesla coil systems.
• Dual Totem Driver Outputs: Provides high-current drive interface capability for gate drive transformer or power stage driving arrangements.
• DRSSTC Application: Intended for dual-resonant solid-state Tesla coil builds, artificial lightning demonstrations, and resonant power electronics experiments.
• Modular Design: Can be integrated into custom Tesla coil control systems, bridge driver stages, and experimental resonant inverter projects.
• Project & Research Use: Suitable for experienced builders, electronics hobbyists, and engineers working with high-frequency switching systems.

Description

This DRSSTC UD2.9 phase-shift PDM dual totem driver board is designed for advanced Tesla coil and resonant power electronics projects. It is intended for use as a control and driver module in dual-resonant solid-state Tesla coil systems where reliable gate drive control and modulation features are required.

The board supports phase-shift and PDM-style operating modes, making it suitable for experimental Tesla coil systems, artificial lightning displays, pulse-controlled resonant inverters, and high-frequency switching applications.

With dual totem driver output stages, this module can be used as part of a larger Tesla coil control system where the driver board interfaces with a gate drive transformer, bridge stage, or external power switching section. Final performance depends on the full system design, including interrupter settings, feedback method, gate drive arrangement, bridge topology, power devices, bus voltage, grounding, and protection circuitry.

Typical Applications

• DRSSTC Tesla coil driver systems
• Dual-resonant solid-state Tesla coil builds
• Artificial lightning demonstration projects
• Phase-shift and PDM controlled resonant systems
• Gate drive transformer driver stages
• High-frequency inverter and resonant power electronics experiments
• Advanced electronics research and prototyping

Specifications

• Product Name: DRSSTC UD2.9 Phase-Shift PDM Dual Totem Driver Board
• Product Type: Driver module
• Application: DRSSTC, Tesla coil, resonant inverter, and high-frequency driver systems
• Control Mode: Phase-shift / PDM mode support
• Output Stage: Dual totem driver outputs
• Condition: New
• High-Concerned Chemical: None stated
• Origin: Mainland China

Package Includes

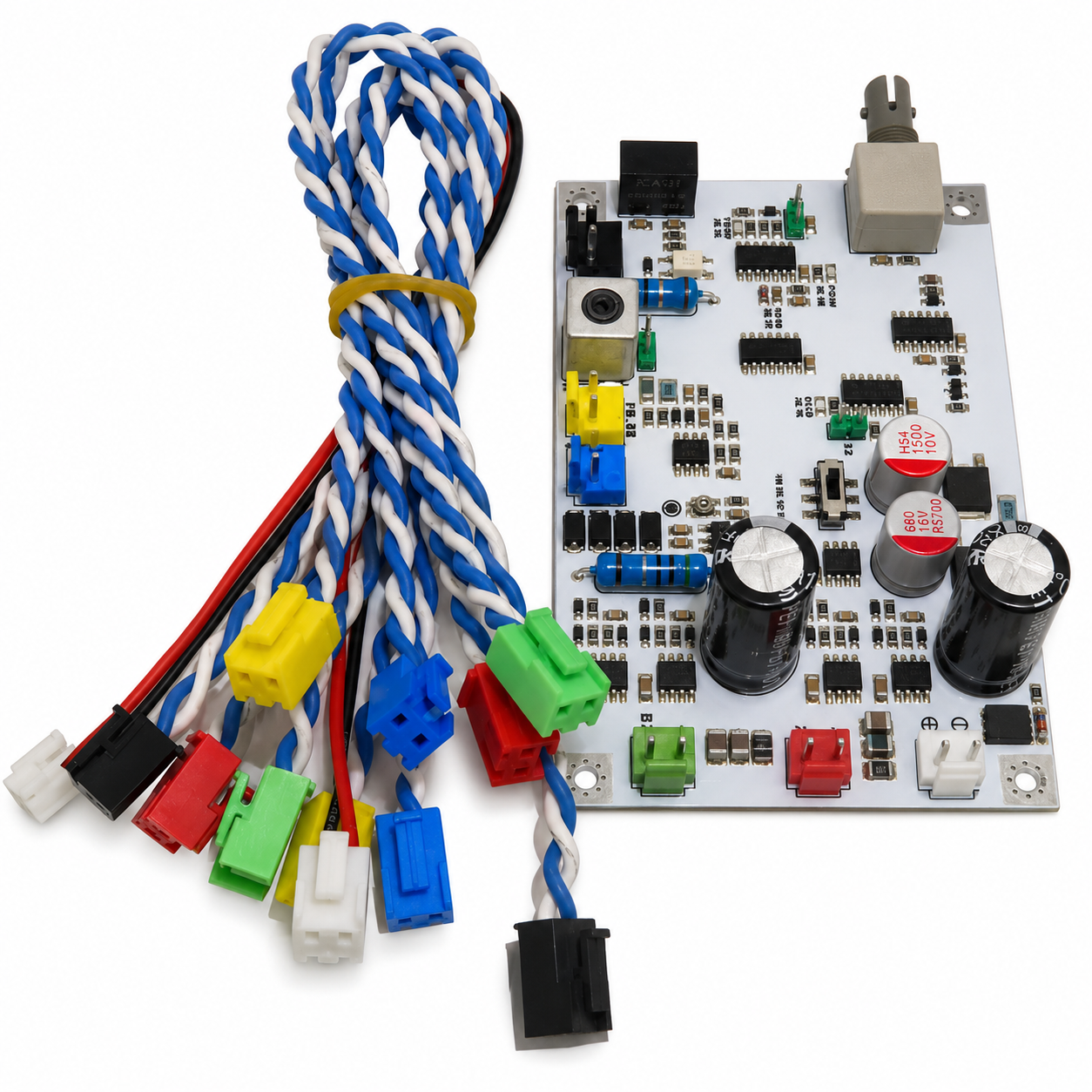

• 1 × DRSSTC UD2.9 Phase-Shift PDM Dual Totem Driver Board

Important Safety Notes

• For experienced users only: This board is intended for builders familiar with Tesla coils, high-voltage systems, resonant power electronics, and safe testing procedures.
• High voltage hazard: Tesla coil systems can generate dangerous voltages, strong RF fields, and high-energy pulses. Incorrect use may cause electric shock, fire, equipment damage, or injury.
• Requires external system design: This is a driver board only. Power bridge, interrupter, feedback network, gate drive transformer, protection circuitry, power supply, and coil hardware must be designed separately.
• Verify before powering: Check wiring, grounding, signal polarity, drive timing, current limiting, and protection circuits before applying bus voltage.
• Use proper isolation: Use suitable isolation, fusing, enclosures, emergency stop controls, and safe test distances when operating high-voltage equipment.

Tip: Before connecting this board to a power bridge, test the logic supply, interrupter input, feedback path, and gate drive waveform at low voltage with an oscilloscope.
