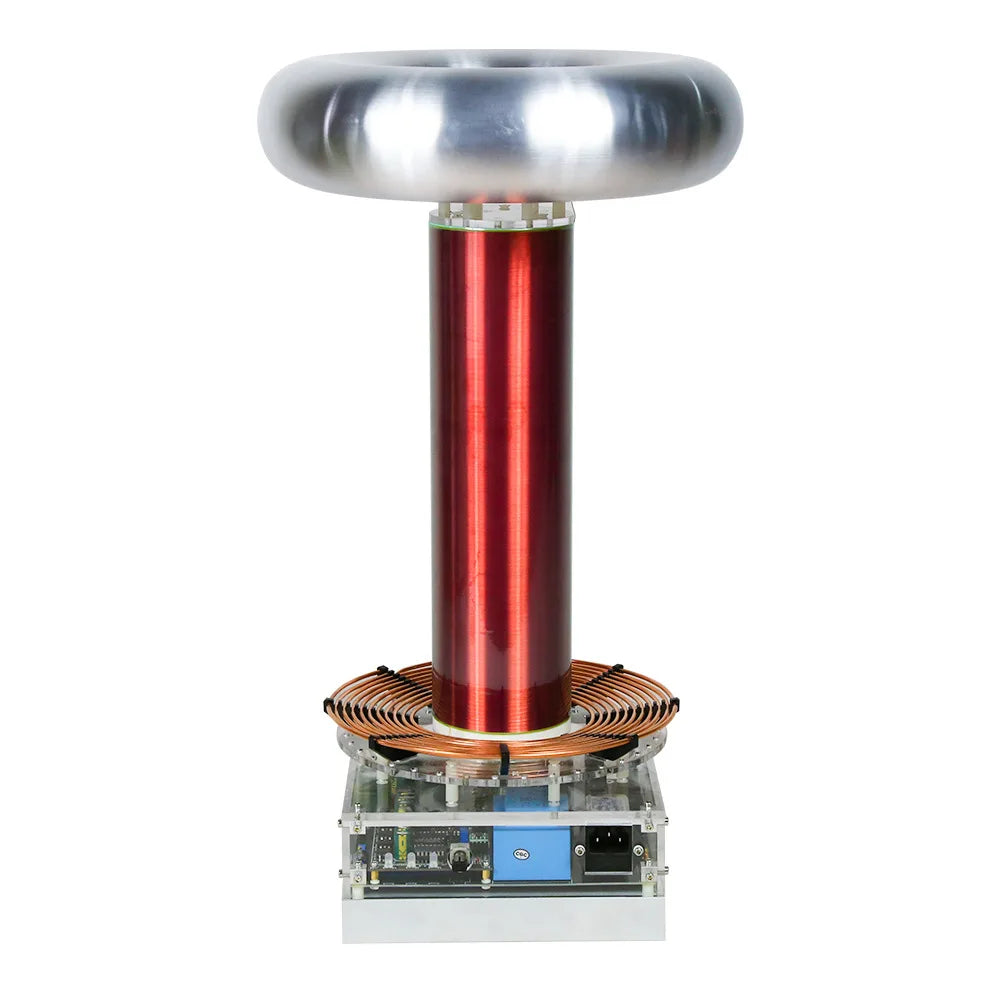

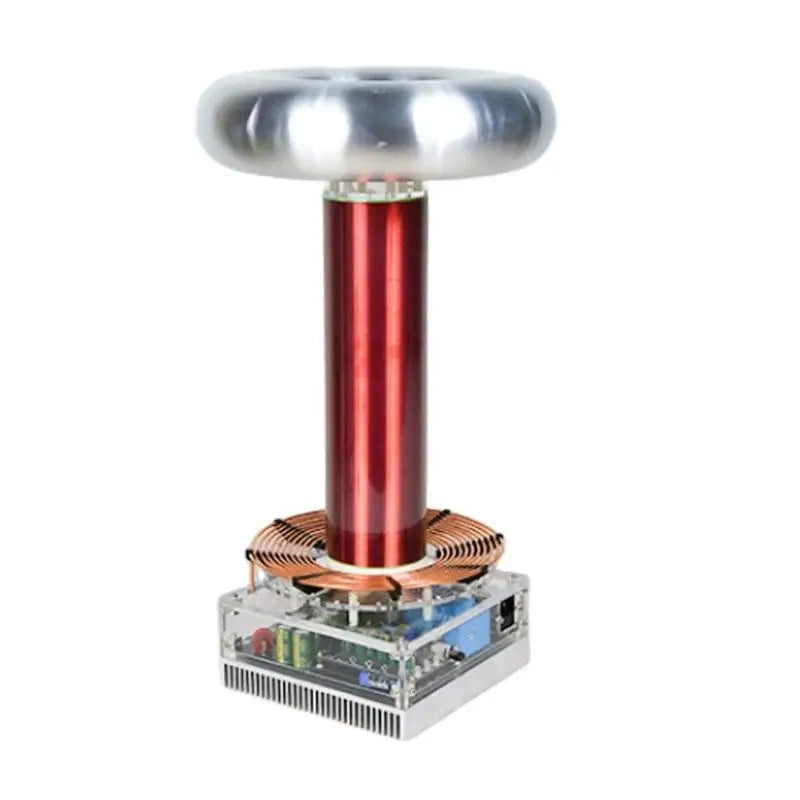

Experience high-frequency plasma arcs with this fully assembled solid-state Tesla coil (SSTC), designed for audio-modulated output and educational demonstrations. Built for reliability and performance, this unit delivers stable arcs synchronized with sound input.
⚙️ Key Features
Dual totem-pole phase-shift driver for efficient IGBT switching
Audio modulation via 3.5mm input (music arc capability)
Optically isolated control for enhanced safety and signal integrity
Full-bridge power stage for high output performance
Fiber-optic signal transmission for interference resistance
Arc extinguishing protection circuit for stable operation

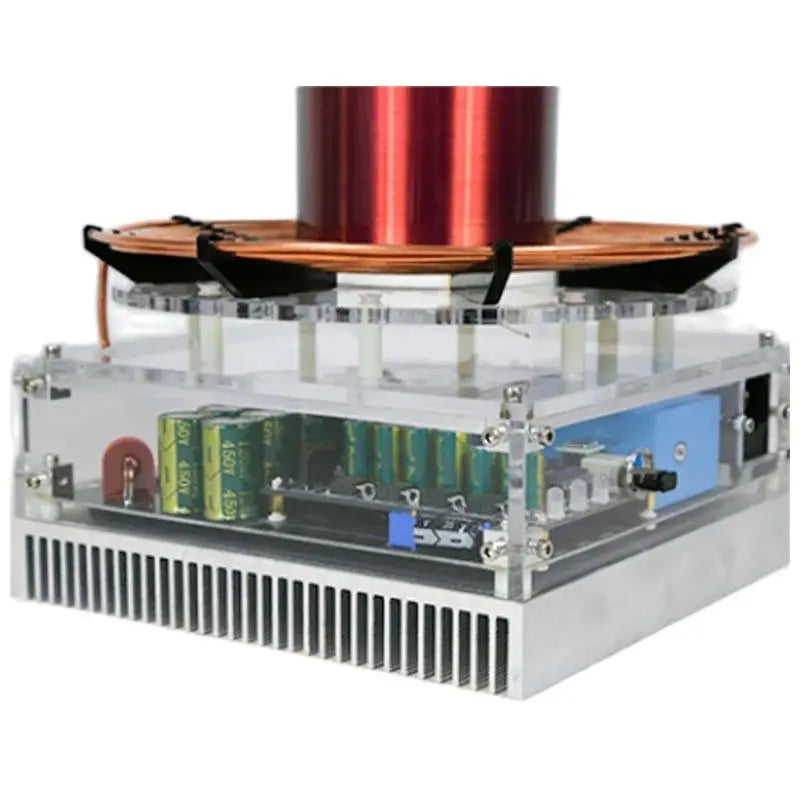

Compact acrylic structure for durability and easy transport
📊 Specifications
Input Voltage: 220V AC
Operating Frequency: ~200 kHz
Discharge Length: Up to 60–70 mm (air)
Peak Output Voltage: Up to 500kV (estimated)
Control Input: 3.5mm audio jack
⚠️ Safety Notice
This is a high-voltage device intended for experienced users. Operate in a controlled environment and follow proper electrical safety precautions.
