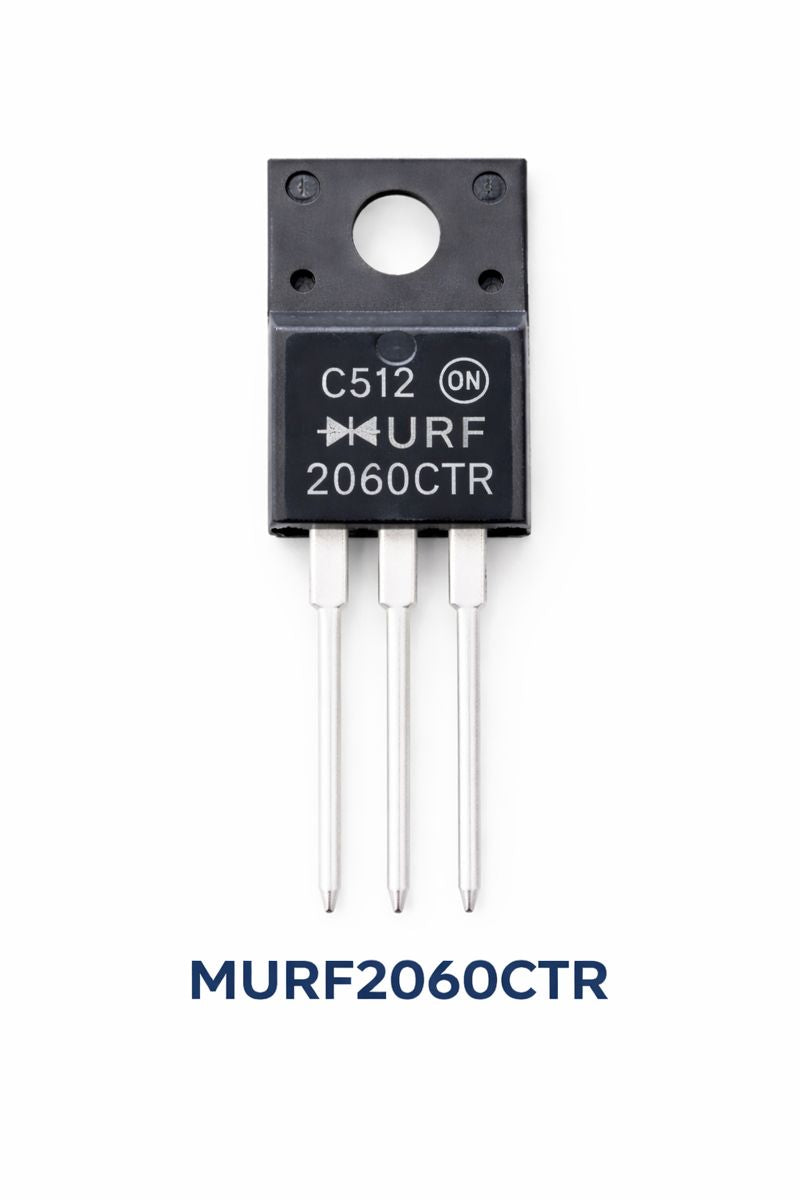

MURF2060CT / MURF2060CTR – 20A 600V Fast Recovery Diode (TO-220)

MURF2060CT / MURF2060CTR – 20A 600V Fast Recovery Diode (TO-220)

The MURF2060CT and MURF2060CTR are high-performance ultrafast recovery rectifier diodes designed for high-frequency, high-voltage power electronics.
They are ideal for use in SMPS, inverters, resonant converters, SSTC/DRSSTC systems, flyback circuits, and fast rectification stages.

Both parts share identical electrical characteristics — the only difference is polarity configuration.

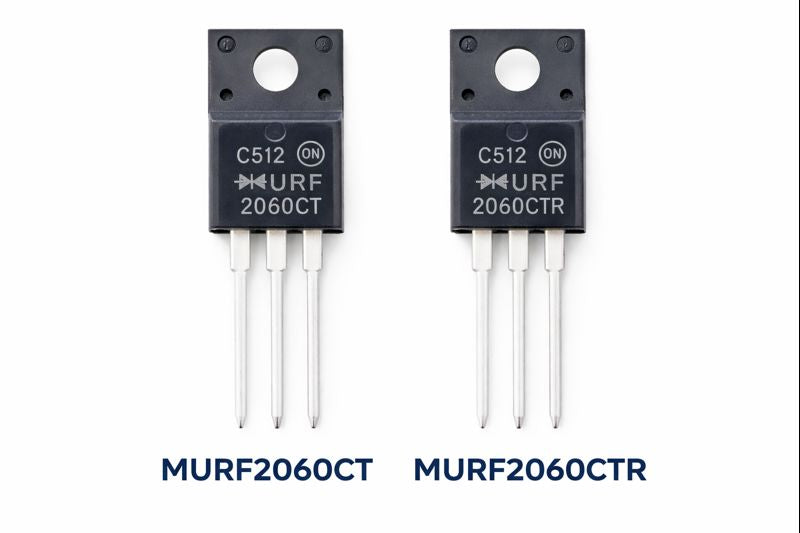

🔹 Available Variants

Please select the required version before checkout:

• MURF2060CT – Common-Cathode (Co-Negative)
• MURF2060CTR – Common-Anode (Co-Positive)

Each device contains two ultrafast diodes in a single TO-220 package.

🔧 Key Electrical Specifications

• Repetitive Peak Reverse Voltage (VRRM): 600 V
• Average Forward Current (IF(AV)): 20 A (total)
• Configuration: Dual diode (common cathode or common anode)
• Reverse Recovery Time (trr): ~35 ns (ultrafast)
• Low Forward Voltage Drop
• High Surge Current Capability
• Low Switching Losses

📦 Package & Mechanical

• Package Type: TO-220
• Pins: 3-lead through-hole
• Mounting: Heatsink-mountable tab
• Isolation: Standard TO-220 (use insulation if mounting to common heatsink)

⚡ Typical Applications

• High-frequency SMPS rectifiers
• Push-pull & half-bridge inverters
• Resonant and LLC converters
• SSTC / DRSSTC output rectification
• Flyback & forward converters
• High-voltage DC power supplies
• Fast freewheeling / snubber circuits

✅ Product Condition

• Brand New
• Original / Genuine Part
• 100% Tested
• Not Recycled or Refurbished

🛒 What You Receive

• 1 × MURF2060CT or MURF2060CTR (as selected)
