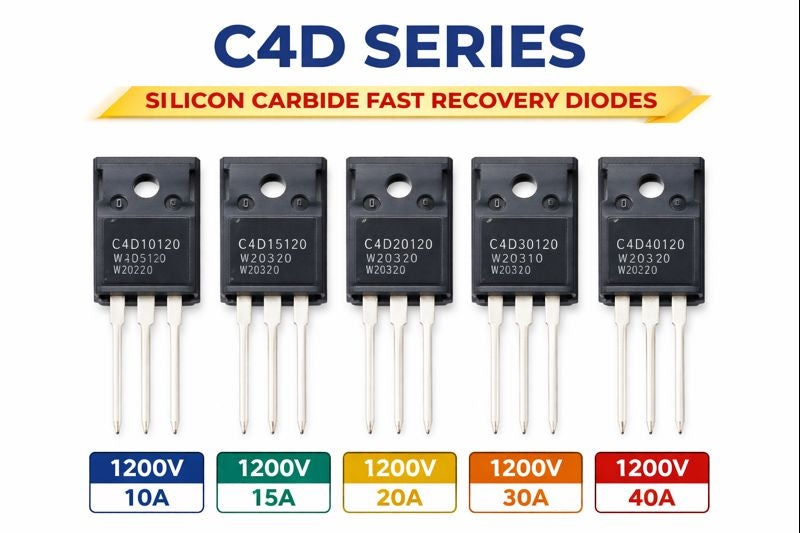

C4D Series Silicon Carbide Fast Recovery Diodes (TO-247) (1pc)

The C4D series Silicon Carbide (SiC) diodes are ultra-fast, high-voltage rectifier diodes designed for high-frequency, high-efficiency power electronics. Unlike conventional silicon diodes, SiC diodes offer near-zero reverse recovery, lower switching losses, and high-temperature operation, making them ideal for modern SMPS, inverters, PFC stages, and resonant converters.

These diodes are housed in a TO-247 package, allowing excellent thermal performance and high power handling in demanding applications.

🔧 Available Variants (Select Option)

• C4D10120 – 1200V, 10A
• C4D15120 – 1200V, 15A
• C4D20120 – 1200V, 20A
• C4D30120 – 1200V, 30A
• C4D40120 – 1200V, 40A

(All variants are Silicon Carbide fast recovery diodes)

⚡ Key Electrical Characteristics

• Technology: Silicon Carbide (SiC)
• Reverse Voltage (VRRM): 1200 V
• Ultra-Fast / Zero Reverse Recovery
• Very Low Switching Losses
• High Surge Current Capability
• High Temperature Operation (up to 175 °C junction)

📦 Package & Mechanical

• Package Type: TO-247
• Mounting: Heatsink-mountable
• Leads: Through-hole
• Excellent Thermal Performance

🔌 Typical Applications

• Power factor correction (PFC) stages
• High-frequency SMPS
• Inverters & UPS systems
• DC-DC converters
• Solar inverters
• EV chargers & industrial power supplies
• High-efficiency resonant converters

📦 Package Quantity

• 1 Piece per listing
  (Select required current rating before checkout)

🛒 What You Receive

• 1 × C4D Series Silicon Carbide Fast Recovery Diode
• Variant as selected (C4D10120 / C4D15120 / C4D20120 / C4D30120 / C4D40120)
