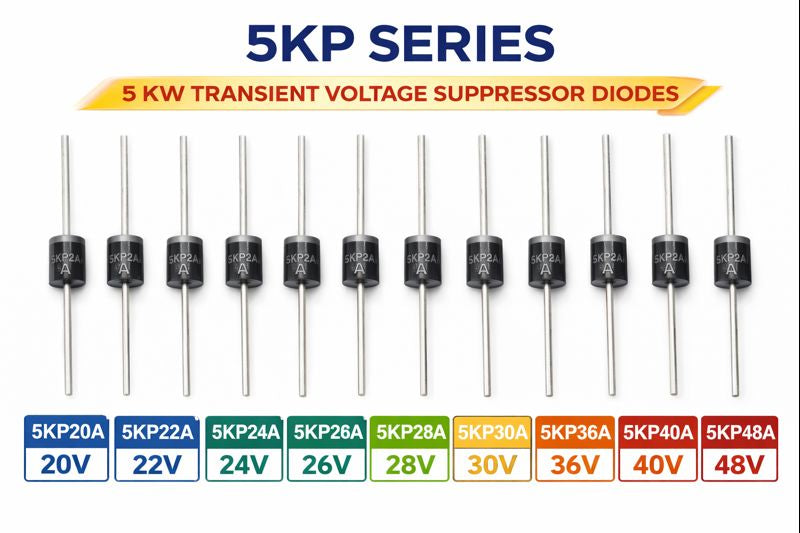

5KP Series TVS Diodes – 5 kW Transient Voltage Suppressors (DO-201) (10pcs)

The 5KP series TVS diodes are high-power transient voltage suppressors designed to protect sensitive electronic circuits from voltage spikes, surges, and transient over-voltage events. With a 5 kW peak pulse power capability, these devices provide fast, reliable clamping for demanding industrial, power, and automotive applications.

They are commonly used for surge protection, ESD suppression, inductive load protection, and lightning transient clamping.

🔧 Available Variants (Select Option)

• 5KP20A
• 5KP22A
• 5KP24A
• 5KP26A
• 5KP28A
• 5KP30A
• 5KP36A
• 5KP40A
• 5KP43A
• 5KP45A
• 5KP48A

Each variant differs by breakdown voltage.
Please select the required voltage rating before checkout.

⚡ Key Electrical Characteristics

• Device Type: TVS (Transient Voltage Suppressor) Diode
• Peak Pulse Power: 5,000 W (5 kW)
• Response Time: Extremely fast (nanosecond range)
• Unidirectional “A” suffix
• High surge current capability
• Excellent clamping performance

📦 Package & Mechanical

• Package Type: DO-201 (Axial lead)
• Mounting: Through-hole
• Robust epoxy body for high surge reliability

🔌 Typical Applications

• Power supply surge protection
• DC bus and rail protection
• Inductive load clamping (relays, motors, coils)
• Automotive electronics
• Industrial control systems
• Inverter and SMPS input protection
• Lightning and transient surge suppression

📦 Package Quantity

• 10 Pieces per listing
• Quantity applies to the selected voltage variant

🛒 What You Receive

• 10 × 5KP Series TVS Diodes
• Variant as selected (e.g. 5KP48A)
