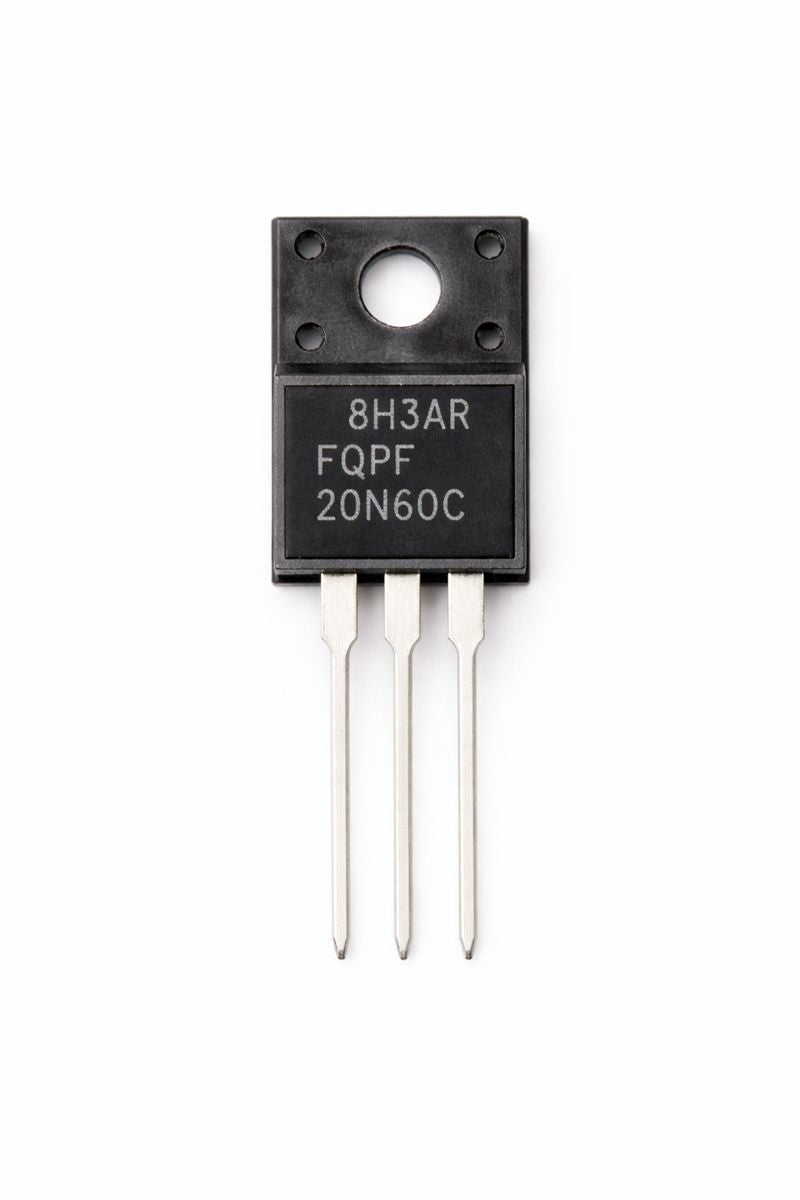

FQPF20N60C – 600V 20A N-Channel Power MOSFET (TO-220F)

The FQPF20N60C is a high-voltage N-channel power MOSFET designed for high-frequency switching applications such as SMPS, inverters, flyback converters, PFC stages, and DC-DC power supplies. It combines low on-resistance, fast switching performance, and a fully insulated TO-220F package, making it ideal for compact and electrically isolated designs.

This device includes an integral fast body diode, allowing reliable operation in switching and freewheeling applications common in power electronics.

🔧 Key Electrical Specifications

• Drain-Source Voltage (VDS): 600 V
• Continuous Drain Current (ID): 20 A
• RDS(on): Low on-resistance for reduced conduction losses
• Gate Type: Standard logic-level compatible drive
• Integrated Body Diode: Fast recovery
• High Switching Speed

📦 Package & Mechanical

• Package Type: TO-220F (Fully Insulated)
• Mounting: Direct heatsink mounting without insulation pad
• Leads: 3-pin through-hole
• Electrical Isolation: Drain isolated from mounting tab

⚡ Typical Applications

• Switch-mode power supplies (SMPS)
• Inverters and UPS systems
• Flyback & forward converters
• Power factor correction (PFC) circuits
• High-voltage DC-DC converters
• Motor drives and power switching stages

📦 Available Quantities

• 10-Piece Lot
• 20-Piece Lot

(Select desired quantity before checkout)

✅ Product Condition

• Brand New
• Original / Genuine Component
• Unused
• Suitable for professional and DIY projects

🛒 What You Receive

• FQPF20N60C N-Channel Power MOSFET(s)
• Quantity as selected (10PCS or 20PCS)
